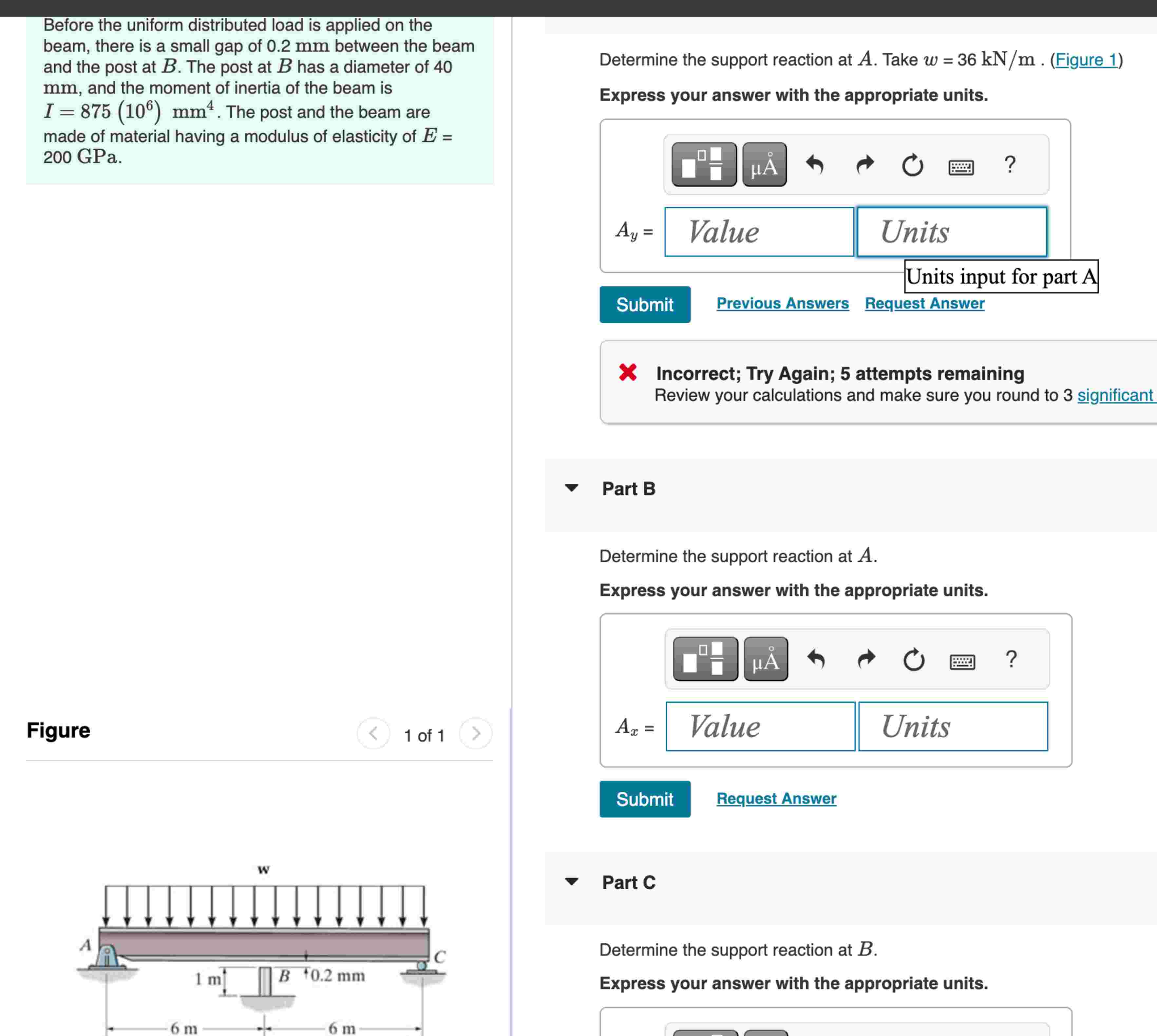

Before the uniform distributed load is applied on the beam, there is a small gap of $0\mathrm{.}2$ mm between the beam and the post at $\backslash ($ B $\backslash ).$ The post at $\backslash ($ B $\backslash )$ has a diameter of $40$ mm $,$ and the moment of inertia of the beam is $\backslash ($ I$=875\backslash$left$(10^\{6\}\backslash$right$)\backslash$mathrm$\{$mm$\}^\{4\}\backslash ).$ The post and the beam are made of material having a modulus of elasticity of $\backslash ($ E$=\backslash )200$ GPa.

Determine the support reaction at $\backslash ($ A $\backslash ).$ Take $\backslash ($ w$=36\backslash$mathrm$\{$kN$\}/\backslash$mathrm$\{$m$\}\backslash ).($Figure $1)$

Express your answer with the appropriate units.

Previous Answers

Request Answer

X Incorrect; Try Again; $5$ attempts remaining

Review your calculations and make sure you round to $3$ significant

Part B

Determine the support reaction at $\backslash ($ A $\backslash ).$

Express your answer with the appropriate units.

$\backslash [$

A$\_\{$x$\}=$

$\backslash ]$

Request Answer

Part C

Determine the support reaction at $\backslash ($ B $\backslash ).$

Express your answer with the appropriate units.
