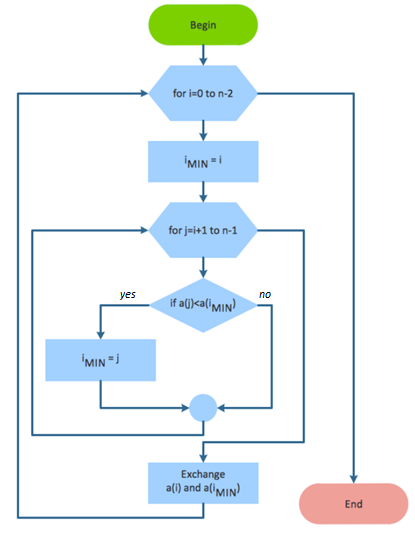

Below is the flow diagram of the Selection Sort algorithm.

The array elements are listed in the sample table below according to the flow chart above.

According to this information; a) Calculating the average value of array elements and assigning it to the avg variable, b) Implementing the Selective Sorting algorithm in assembly language with the option a Write the code in the blank space below, explain the code.

n= 10 (Number of elements of array a)

a[10] = { 32, 16, 64, 128, 2, 8, 0, 4, 1, 3 }

Answer:

MY_DATA SEGMENT PARA 'DATA'

n DB 10

a DB 32, 16, 64, 128, 2, 8, 0, 4, 1, 3

ort DW ?

MY_DATA ENDS

MY_CODE SEGMENT PARA 'CODE'

MY_PROG PROC FAR

ASSUME CS:MY_CODE, DS:MY_DATA

MOV AX,MY_DATA

MOV DS,AX

..........

MOV AH, 04CH

INT 21H

RET

MY_PROG ENDP

MY_CODE ENDS

END MY_PROG

yes no 'MIN= Exchange a(i) and al'MIN End min 32 16 64 128 2 8 0 4 1 3 min 0 16 64 128 2 8 324 1 13 0 1 64 128 2 8 324 163 0 1 2 128 64 8 324 16 3 0 1 N 3 64 8 324 16 128 0 0 1 2 3 4 8 3264 16 128 0 1 N 3 4 8 8 32 64 16 128 0 1 3 4 8 16 64 32 128 N 0 1 1 2 3 4 co 16 32 64 128
