Binary Word Comparator

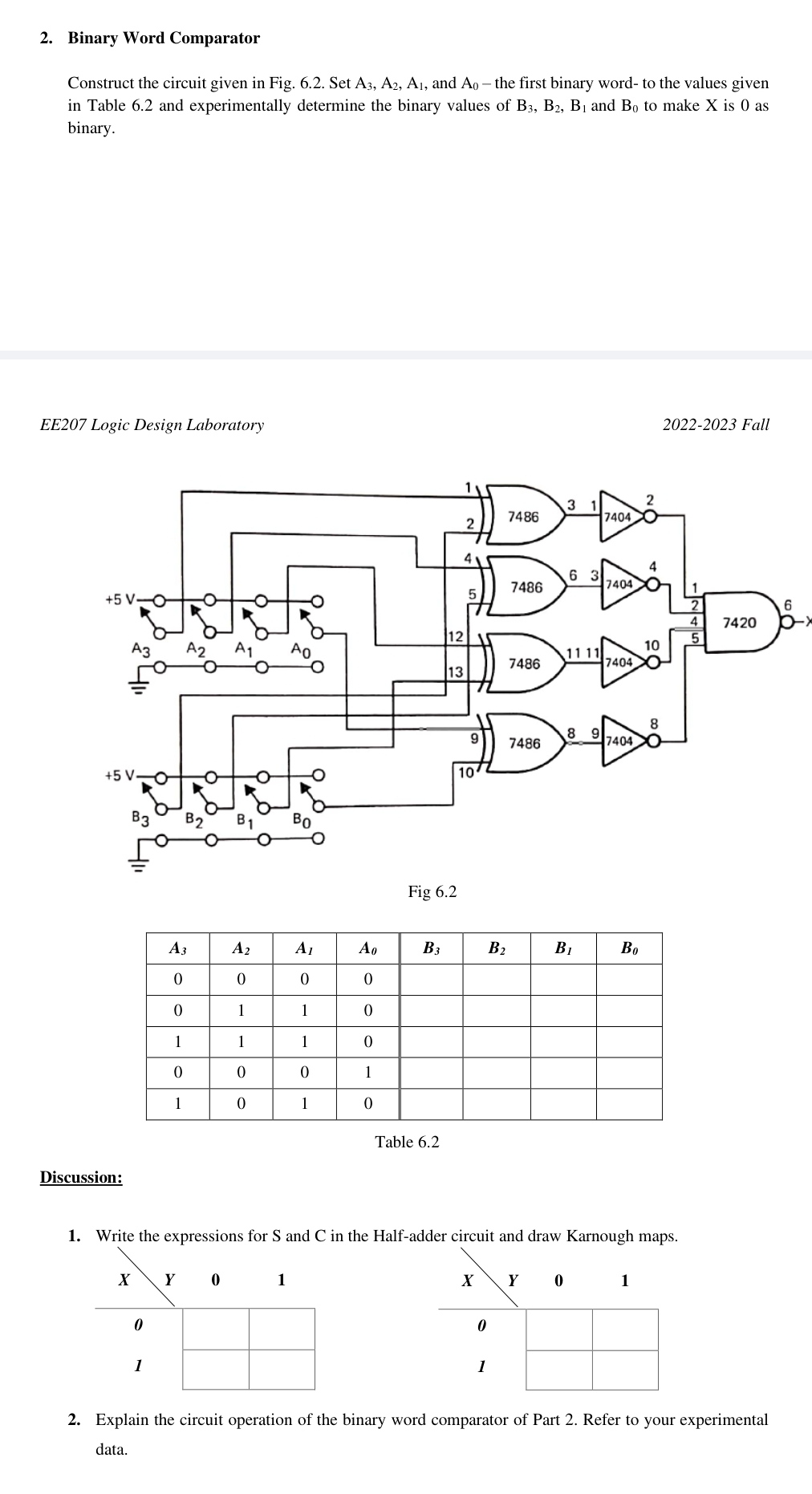

Construct the circuit given in Fig. $6\mathrm{.}2.$ Set $A_3,A_2,A_1,$ and $A_0-$ the first binary word$-$ to the values given in Table $6\mathrm{.}2$ and experimentally determine the binary values of $B_3,B_2,B_1$ and $B_0$ to make $x$ is $0$ as binary.

EE$207$ Logic Design Laboratory

$2022-2023$ Fall

Fig $6\mathrm{.}2$

$\backslash$table$[[A_3,A_2,A_{\text{I}},A_0,B_3,B_2,B_{\text{I}},B_0$
