Question: Block A supports a pipe column and rests as shown on wedge B . Knowing that the coefficient of static friction at all surfaces of

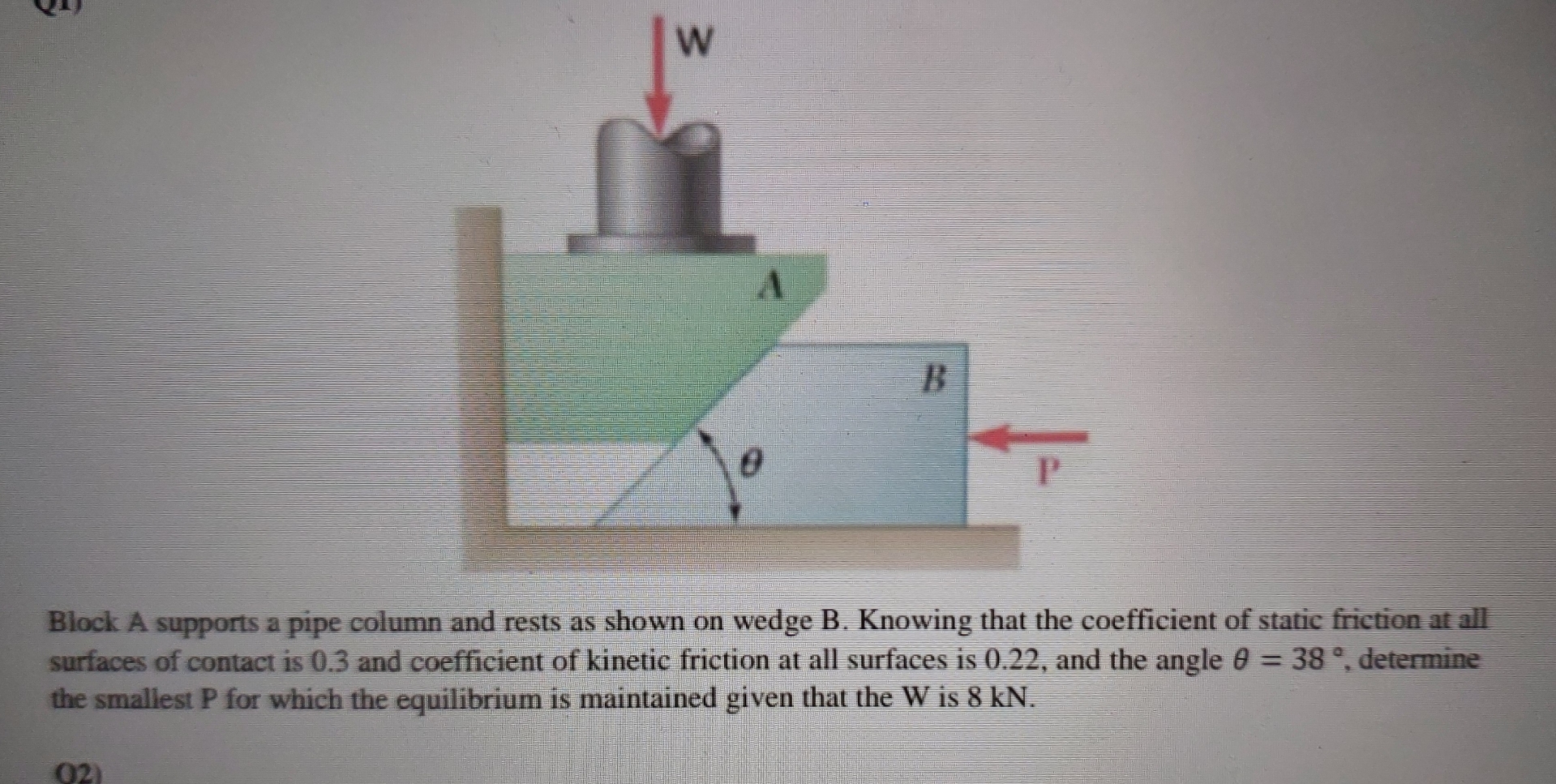

Block A supports a pipe column and rests as shown on wedge B. Knowing that the coefficient of static friction at all surfaces of contact is 0.3 and coefficient of kinetic friction at all surfaces is 0.22, and the angle =38, determine the smallest P for which the equilibrium is maintained given that the W is 8 kN .
Block A supports a pipe column and rests as shown

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

Q:

Block A supports a pipe column and rests as shown on wedge B. Knowing that the coefficient of static friction at all surfaces of contact is 0.25 and that = 45, determine the smallest force P...

Q:

Block A supports a pipe column and rests as shown on wedge B. Knowing that the coefficient of static friction at all surfaces of contact is 0.25 and that at = 45, determine the smallest force P...

Q:

Block A supports a pipe column and rests as shown on wedge B. Knowing that the coefficient of static friction at all surfaces of contact is 0.25 and that θ =45°, determine the...

Q:

Block A supports a pipe column and rests as shown on wedge B. Knowing that the coefficient of static friction at all surfaces of contact is 0.25 and that = 45, determine the smallest force P for...

Q:

Block A supports a pipe column and rests as shown on wedge B. Knowing that the coefficient of static friction at all surfaces of contact is 0.25 and that = 45, determine the smallest force P for...

Q:

Block A supports a pipe column and rests as shown on wedge B. The coefficient of static friction at all surfaces of contact is 0.25. If P = 0, determine (a) The angle for which sliding is impending,...

Q:

5. Static Friction The maximum frictional force between two objects depends upon the two surfaces, how hard they are pressed together, and whether or not they are relatively static. Apparatus An...

Q:

How do I answer questions 5, 6 and 7 on page 28? I have typed up the work for page 29 in case my hand writing wasn't easy to read Procedure In this lab you will determine the coefficient of static...

Q:

Three boxes, A, B, and C, are placed on a frictionless surface as shown in the diagram below. If you push on box A with a force of 8.25 N, find the contact force (in N) between each pair of boxes....

Q:

1. The 200-lb block shown has impending motion up the plane caused by the horizontal force of 400 lb. Determine the coefficient of static friction between the contact surfaces. Ans. As = 0.66 200 b...
