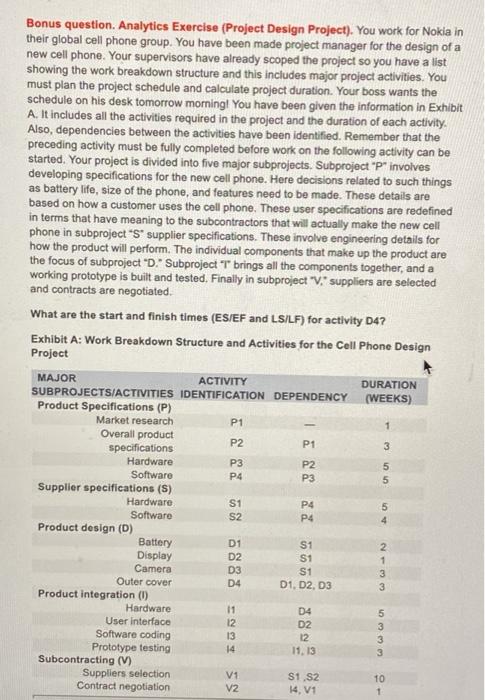

Bonus question. Analytics Exercise (Project Design Project). You work for Nokia in their global cell phone group. You have been made project manager for the design of a new cell phone. Your supervisors have already scoped the project so you have a list showing the work breakdown structure and this includes major project activities. You must plan the project schedule and calculate project duration. Your boss wants the schedule on his desk tomorrow morning! You have been given the information in Exhibit A. It includes all the activities required in the project and the duration of each activity. Also, dependencies between the activities have been identified. Remember that the preceding activity must be fully completed before work on the following activity can be started. Your project is divided into five major subprojects. Subproject involves developing specifications for the new cell phone. Here decisions related to such things as battery life, size of the phone, and features need to be made. These details are based on how a customer uses the cell phone. These user specifications are redefined in terms that have meaning to the subcontractors that will actually make the new cell phone in subproject "S" supplier specifications. These involve engineering details for how the product will perform. The individual components that make up the product are the focus of subproject "D. Subproject T brings all the components together, and a working prototype is built and tested. Finally in subproject "V, suppliers are selected and contracts are negotiated. What are the start and finish times (ES/EF and LS/LF) for activity D4? Exhibit A: Work Breakdown Structure and Activities for the Cell Phone Design Project MAJOR ACTIVITY DURATION SUBPROJECTS/ACTIVITIES IDENTIFICATION DEPENDENCY (WEEKS) Product Specifications (P) Market research P1 Overall product P2 P1 3 specifications 5 Software Supplier specifications (S) Hardware P4 Software S2 Product design (D) Battery Display D2 Camera Outer cover D1, D2, D3 Product integration (1) Hardware D2 Software coding Prototype testing 11.13 Subcontracting (V) Suppliers selection V1 S1,S2 10 Contract negotiation V2 14, V1 1 Hardware P2 P3 P4 P3 U U S1 P4 5 4 D1 S1 S1 S1 D3 D4 D4 User Interface 11 12 12. 14 1 1 as battery life, size of the phone, and features need to be made. These details are based on how a customer uses the cell phone. These user specifications are redefined in terms that have meaning to the subcontractors that will actually make the new cell phone in subproject "S" supplier specifications. These involve engineering details for how the product will perform. The individual components that make up the product are the focus of subproject "D." Subproject T brings all the components together, and a working prototype is built and tested. Finally in subproject "V" suppliers are selected and contracts are negotiated. What are the start and finish times (ES/EF and LS/LF) for activity D4? Exhibit A: Work Breakdown Structure and Activities for the Cell Phone Design Project MAJOR ACTIVITY DURATION SUBPROJECTSIACTIVITIES IDENTIFICATION DEPENDENCY (WEEKS) Product Specifications (P) Market research P1 Overall product specifications Hardware P2 Software Supplier specifications (S) Hardware S1 P4 Software Product design (D) Battery Display Camera Outer cover D1, D2, D3 Product integration (1) Hardware User interface Software coding Prototype testing 11.13 Subcontracting (V) Suppliers selection S1 S2 10 Contract negotiation 14. V1 P2 P1 3 P3 P4 5 5 P3 S2 5 4 P4 D1 D2 D3 D4 S1 S1 S1 2 1 3 3 11 12 13 14 D4 D2 12. V1 V2 1 ES-16, EF-19. LS-16, LF-19 O ES-22, EF-27, LS-22, LF-27 O ES-22, EF-25, LS-22, LF-25 O ES-16, EF-17, LS-18, LF-19
