Question: Boolean functions for the outputs c 2 ( a 1 , a 0 , b 1 , b 0 ) , c 1 ( a

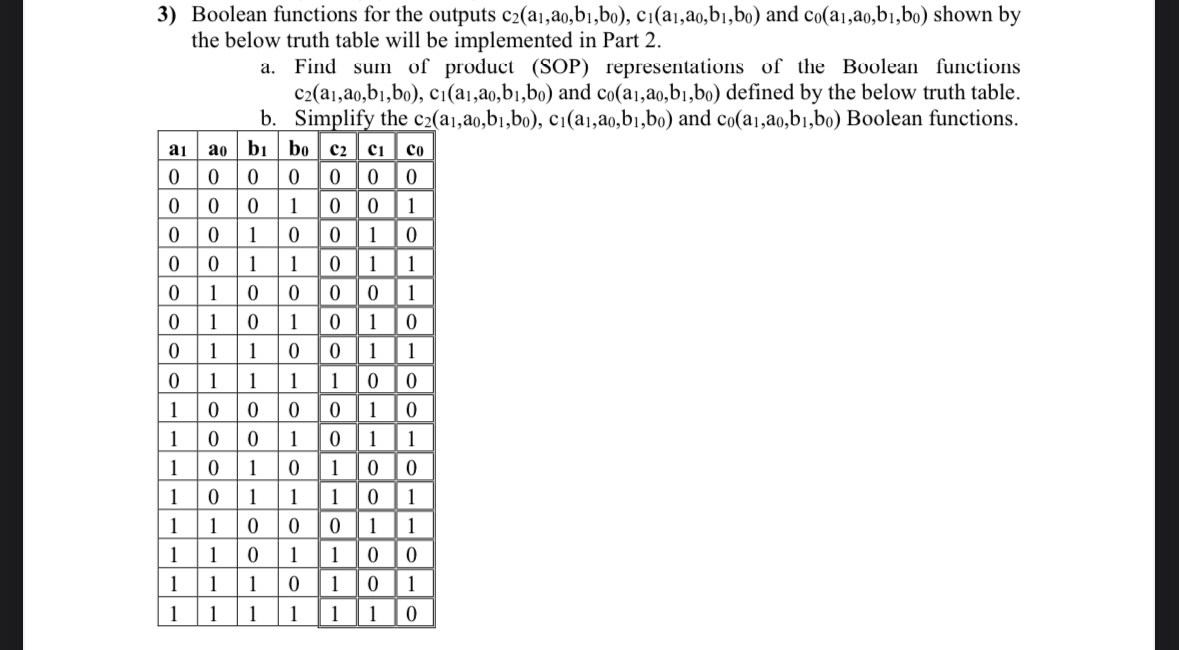

Boolean functions for the outputs c2(a1,a0,b1,b0),c1(a1,a0,b1,b0) and c0(a1,a0,b1,b0) shown by the below truth table will be implemented in Part 2.
a. Find sum of product (SOP) representations of the Boolean functions c2(a1,a0,b1,b0),c1(a1,a0,b1,b0) and c0(a1,a0,b1,b0) defined by the below truth table.
b. Simplify the c2(a1,a0,b1,b0),c1(a1,a0,b1,b0) and c0(a1,a0,b1,b0) Boolean functions.
Boolean functions for the outputs c 2 ( a 1 , a 0

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
