Question: Both please 5.28 A logic circuit realizes the function F(a, b, 5 d) = a'b' + a'cd + ac'd + ab'd'. Assuming that a =

Both please

Both please 5.28 A logic circuit realizes the function F(a, b, 5

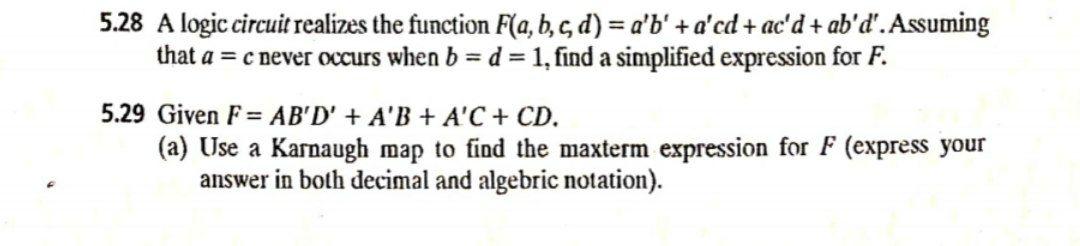

5.28 A logic circuit realizes the function F(a, b, 5 d) = a'b' + a'cd + ac'd + ab'd'. Assuming that a = c never occurs when b = d = 1, find a simplified expression for F. 5.29 Given F = AB'D' + A'B + A'C + CD. (a) Use a Karnaugh map to find the maxterm expression for F (express your answer in both decimal and algebric notation)

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Databases Questions!

Hi 1. Find the minimum sum of products of each function using a Karnaugh map. (5.3,20%) (a) f(a,b,c) =mm2 + m + (b) / (d, e, f)= (0, 1, 2, 4) (c) har..t) = +P8+ (d) fal=92) - M, M 2 (a) Plot the...

A logic circuit realizes the function Fa, b, c, d)-ab'd' + a'b' + a,cd +ac,d. Assuming that a = c never occurs when b d 1, find a simplified expression for F 9

A logic circuit realizes the function F(a,b,c,d) = a'b'+a'cd+ac'd+ab'd'. Assuming that a=c never occurs when b = d = 0, find a simplified expression for F. (Hint: When can Don't-Cares be used?)
