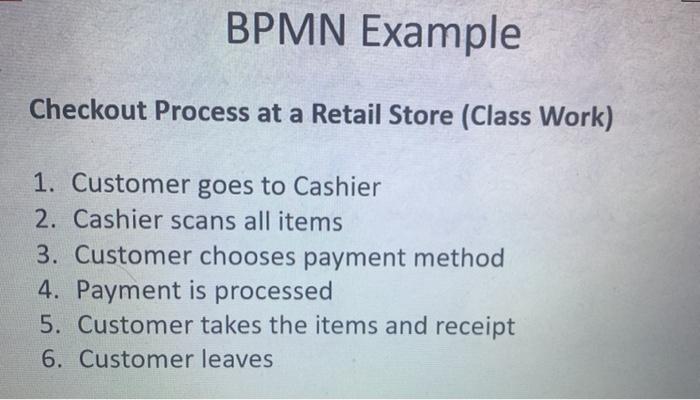

BPMN Example Checkout Process at a Retail Store (Class Work) 1. Customer goes to Cashier 2. Cashier scans all items 3. Customer chooses payment method 4. Payment is processed 5. Customer takes the items and receipt 6. Customer leaves 1. Draw a BPMN diagram from the process details stated below. 2. Identify documents that will be generated from the business process. 3. Identify the potential data that can be generated from each activity of the business process. The data and activity needs to be connected and explained. Process: The following details are provided for the purchasing process of a meat selling shop. The shop sells two types of meats, Goat and Chicken. There are five suppliers to the shop. 1. The meat shop manager checks inventory of meat every day and marks the remaining inventory on a piece of paper that is attached to the storage door 2. The meat shop accountant checks the piece of paper every day to know the level of inventory 3. If the inventory is low, the accountant calls a few suppliers to check meat prices and to know when they can deliver meat to the shop. 4. After speaking to the suppliers, the meat shop accountant prepares a purchase order based on the price and delivery date. 5. The purchase order is checked and signed by the meat shop manager. 6. The accountant sends the purchase order to the selected supplier 7. The meat shop supplier delivers the meat to the shop. 8 The Butcher receives the meat, checks the quantity and inventories the meat. 9. The supplier submits inventory at the time of delivery of the meat 10. The invoice is paid after 15 days of delivery. Expectations: 1. The BPMN diagram should be original, created by the group, should not be copied from any source. 2. Students can add more details in the process if they feel something is missing or will make the process diagram more useful. 3. Documents identified should be realistic and an explanation is required on how the documents are generated BPMN Example Checkout Process at a Retail Store (Class Work) 1. Customer goes to Cashier 2. Cashier scans all items 3. Customer chooses payment method 4. Payment is processed 5. Customer takes the items and receipt 6. Customer leaves 1. Draw a BPMN diagram from the process details stated below. 2. Identify documents that will be generated from the business process. 3. Identify the potential data that can be generated from each activity of the business process. The data and activity needs to be connected and explained. Process: The following details are provided for the purchasing process of a meat selling shop. The shop sells two types of meats, Goat and Chicken. There are five suppliers to the shop. 1. The meat shop manager checks inventory of meat every day and marks the remaining inventory on a piece of paper that is attached to the storage door 2. The meat shop accountant checks the piece of paper every day to know the level of inventory 3. If the inventory is low, the accountant calls a few suppliers to check meat prices and to know when they can deliver meat to the shop. 4. After speaking to the suppliers, the meat shop accountant prepares a purchase order based on the price and delivery date. 5. The purchase order is checked and signed by the meat shop manager. 6. The accountant sends the purchase order to the selected supplier 7. The meat shop supplier delivers the meat to the shop. 8 The Butcher receives the meat, checks the quantity and inventories the meat. 9. The supplier submits inventory at the time of delivery of the meat 10. The invoice is paid after 15 days of delivery. Expectations: 1. The BPMN diagram should be original, created by the group, should not be copied from any source. 2. Students can add more details in the process if they feel something is missing or will make the process diagram more useful. 3. Documents identified should be realistic and an explanation is required on how the documents are generated
