# Breadth-First Search Algorithm

# Valid for any tree graph

from collections import defaultdict

class Tree:

def __init__(self): # Constructor function

self.Tree = defaultdict(list) # default dictionary to store graph

def Branch(self,u,v): # Build the required branches for the Tree

self.Tree[u].append(v)

def BFS(self, s): # DBreadth-First Search functions

print(self.Tree)

visited = [False] * (len(self.Tree)) # Include all the nodes as not visited

print(visited)

print(len(self.Tree))

queue = [] # Create a queue for BFS

visit = []

queue.append(s)

visited[s] = True

while queue:

print ('Queue: ', queue) # Print Queue

s = queue.pop(0) # Move it out when the node is marked as visited

#print ('Visited: ', s)

visit.append(s)

for i in self.Tree[s]:

if visited[i] == False:

queue.append(i)

visited[i] = True

print(' ')

print(visit)

# Build the Tree graph

Net = Tree()

Net.Branch(0, 1)

Net.Branch(0, 5)

Net.Branch(0, 7)

Net.Branch(1, 2)

Net.Branch(1, 3)

Net.Branch(1, 5)

Net.Branch(2, 4)

Net.Branch(3, 4)

Net.Branch(5, 6)

Net.Branch(5, 9)

Net.Branch(6, 7)

Net.Branch(6, 8)

Net.Branch(7, 8)

Net.Branch(9, 10)

Net.Branch(10, 2)

Net.Branch(10, 11)

print ("The visited nodes starting from vertex 0")

Net.BFS(0)

Terminal:

if visited[i] == False: IndexError: list index out of range

How to fix the error?

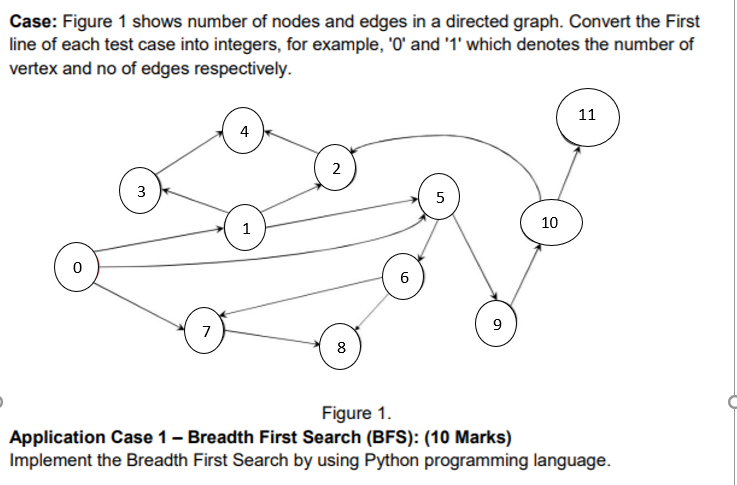

Case: Figure 1 shows number of nodes and edges in a directed graph. Convert the First line of each test case into integers, for example, 'O' and '1' which denotes the number of vertex and no of edges respectively. 11 4 2 3 5 1 10 0 6 7 9 8 Figure 1. Application Case 1 - Breadth First Search (BFS): (10 Marks) Implement the Breadth First Search by using Python programming language
