(C)

16T

\ (D)

4T

\ (E)

1T

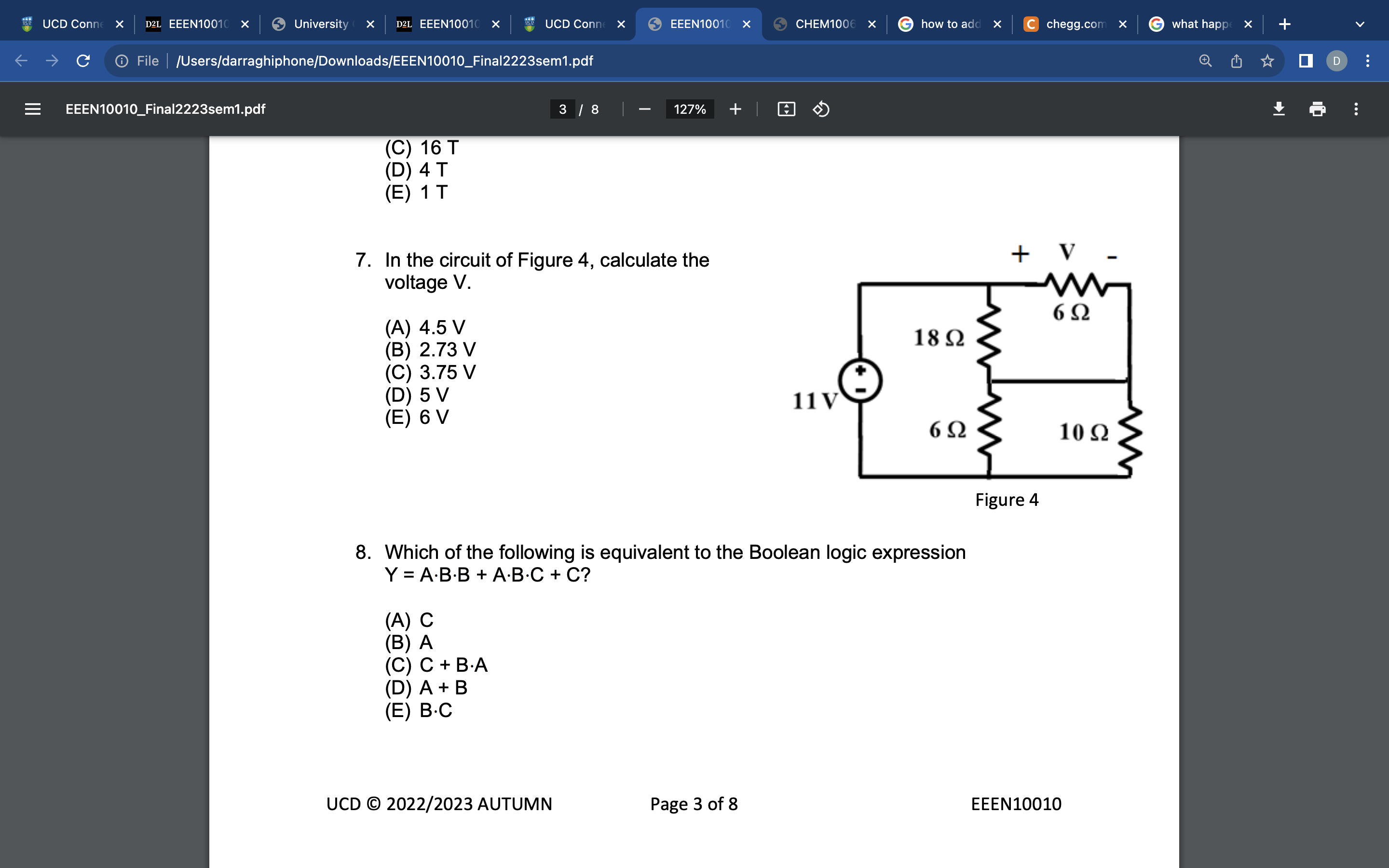

\ In the circuit of Figure 4, calculate the\ voltage

V

.\ (A)

4.5V

\ (B)

2.73V

\ (C)

3.75V

\ (D)

5V

\ (E)

6V

\ Which of the following is equivalent to the Boolean logic expression\

Y=A*B*B+A*B*C+C

?\ (A)

C

\ (B)

A

\ (C)

C+B*A

\ (D)

A+B

\ (E) B.C

7. In the circuit of Figure 4, calculate the voltage V. (A) 4.5V (B) 2.73V (C) 3.75V (D) 5V (E) 6V 8. Which of the following is equivalent to the Boolean logic expression Y=ABB+ABC+C ? (A) C (B) A (C) C+BA (D) A+B (E) B.C
