Question: ( c ) A discrete - time LTI system has the system transfer function H ( z ) = z - 0 . 4 z

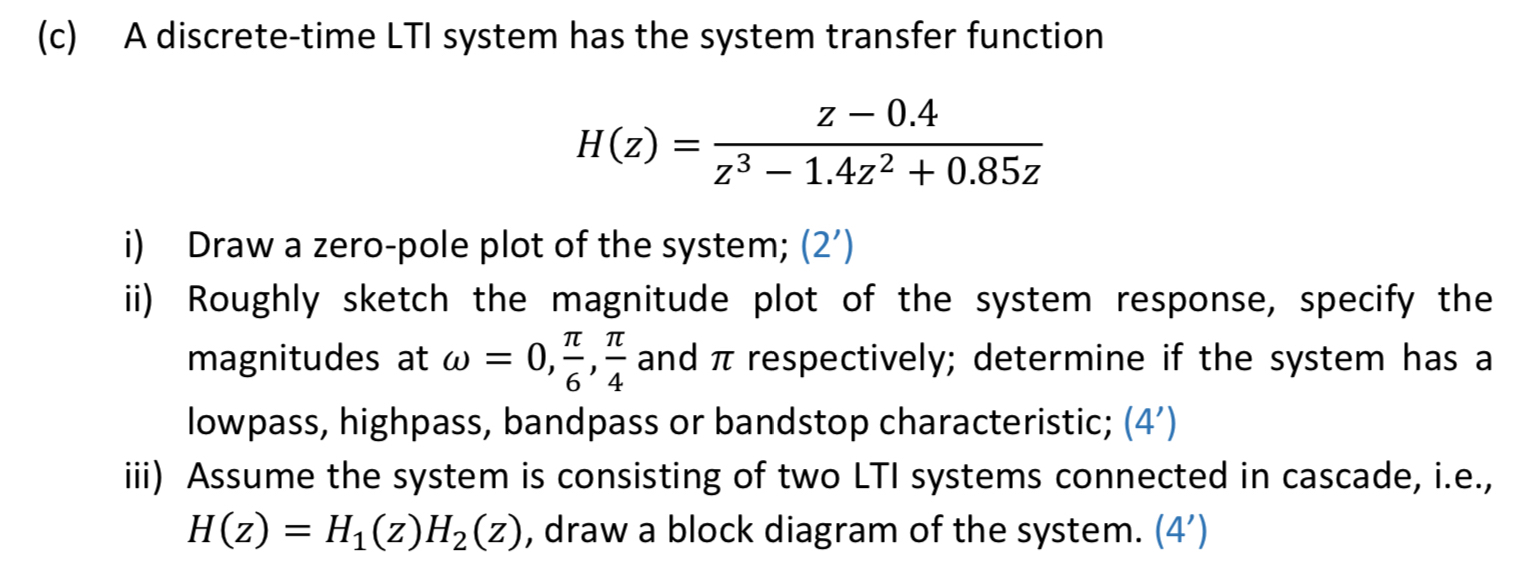

(c) A discrete-time LTI system has the system transfer function
H(z)=z-0.4z3-1.4z2+0.85z
i) Draw a zero-pole plot of the system; (2')
ii) Roughly sketch the magnitude plot of the system response, specify the magnitudes at =0,6,4 and respectively; determine if the system has a lowpass, highpass, bandpass or bandstop characteristic; (4')
iii) Assume the system is consisting of two LTI systems connected in cascade, i.e.,H(z)=H1(z)H2(z), draw a block diagram of the system. (4')
( c ) A discrete - time LTI system has the system
