Question: c ) A half wave rectifier circuit is supplied from a 2 3 0 V , 5 0 H z supply with a step -

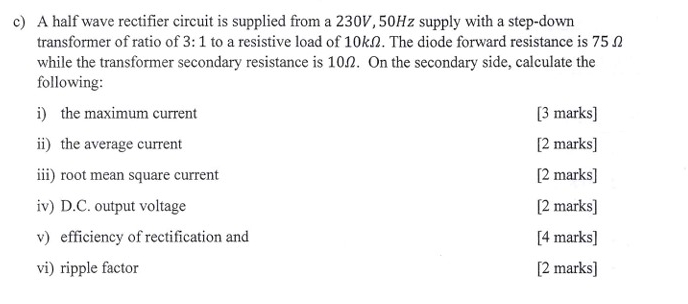

c) A half wave rectifier circuit is supplied from a 230V,50Hz supply with a step-down transformer of ratio of 3:1 to a resistive load of 10k. The diode forward resistance is 75 while the transformer secondary resistance is 10. On the secondary side, calculate the following:
i) the maximum current
[3 marks]
ii) the average current
[2 marks]
iii) root mean square current
[2 marks]
iv) D.C. output voltage
[2 marks]
v) efficiency of rectification and
[4 marks]
vi) ripple factor
[2 marks]
