Question: C . A parabolic vertical curve connects a ( + 4 . 8 % ) grade with a ( - 4

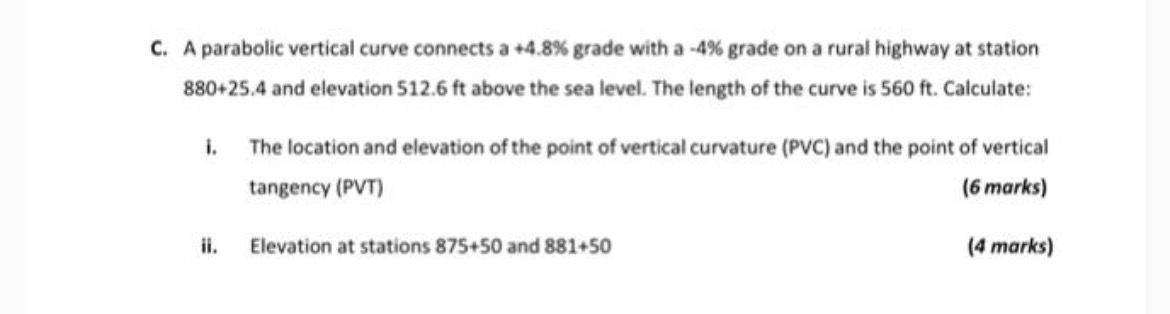

C. A parabolic vertical curve connects a \(+4.8\%\) grade with a \(-4\%\) grade on a rural highway at station \(880+25.4\) and elevation 512.6 ft above the sea level. The length of the curve is 560 ft . Calculate:
i. The location and elevation of the point of vertical curvature (PVC) and the point of vertical tangency (PVT)
(6 marks)
ii. Elevation at stations 875+50 and 881+50
(4 marks)
C . A parabolic vertical curve connects a \ ( + 4
