Question: c. Explain the functionality shown in above sequence diagram in your own words. and answer the the sequence diagram given following questions. System Sales clerk

c. Explain the functionality shown in above sequence diagram in your

c. Explain the functionality shown in above sequence diagram in your own words.

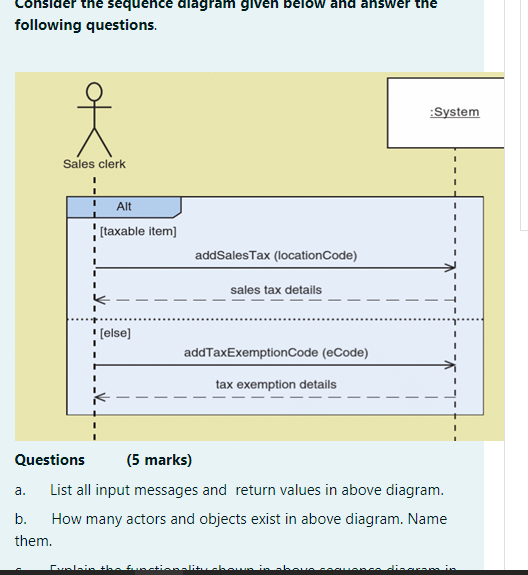

and answer the the sequence diagram given following questions. System Sales clerk : ! [taxable item] Alt 1 addSales Tax (location Code) 1 ! 1 1 sales tax details (else] 1 addTaxExemptionCode (eCode) 1 tax exemption details a. Questions (5 marks) List all input messages and return values in above diagram. b. How many actors and objects exist in above diagram. Name them. discesa
