Question: ( c ) Find R L for which maximum power is transferred to it by the source. What is the maximum power at R L

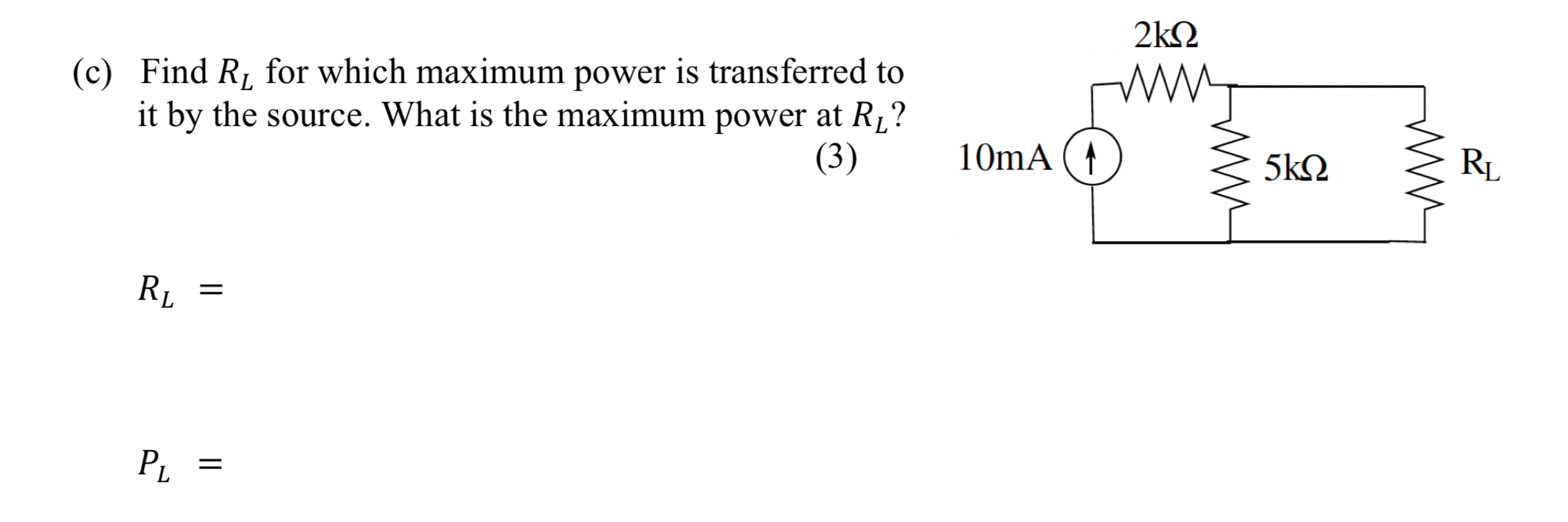

(c) Find RL for which maximum power is transferred to it by the source. What is the maximum power at RL?
(3)
RL=
PL=
( c ) Find R L for which maximum power is

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
