C+++ I NEED CODE, Flowchart/pseudo code as well

Concepts tested in this project

• [ALL concepts from previous projects]
• Selection control structure
  • The if statement
  • The switch statement (optional)
• Relational operators and logical operators
  • Use of relational and logical operators to check numeric ranges
• User friendly
  • Use of user friendly user prompt and simple input validation
  • Use of meaningful output labels and format
  • Use of output manipulators
• Working with string type
• Use of getline()

Project Description

There are two main systems for measuring distance, weight and temperature, the Imperial System of Measurement and the Metric System of Measurement. Most countries use the Metric System, which uses the measuring units such as meters and grams and adds prefixes like kilo, milli and centi to count orders of magnitude. In the United States, we use the older Imperial system, where things are measured in feet, inches and pounds.

Write a program that shows the following menu options and lets the user to convert from Metric to Imperial system:

Converter Toolkit

--------------------

1. Temperature Converter

2. Distance Converter

3. Weight Converter

4. Quit

• If the user enters 1, the program should ask for the temperature in Celsius and convert it to Fahrenheit

• If the user enters 2, the program should ask for the distance in Kilometer and convert it to Mile

• If the user enters 3, the program should ask for the weight in Kilogram and convert it to Pound

• If the user enters 4, the program should end.

Project Specifications

Inputfor this project:

• the user must enter an number to select a menu option
• the user must enter temperature in Celsius
• the user must enter distance in Kilometer
• the user must enter weight in Kilogram
• the user must enter a country name

Input Validation:

• Do not accept a number outside the range of 1 through 4 for the menu option. Be sure to display appropriate error message if the input is invalid.
• Do not accept negative numbers for distance and weight.Be sure to display appropriate error message if the input is invalid.

Output: The program should display the following:

• a menu for Converter Toolkit
• temperature in Fahrenheit, distance in miles or weight in pounds
• a country name
• Programmers full name
• project number
• a due date

Processing Requirements

1. The program should use at least one selection control structure (if else statement)
2. Be sure to convert as specified. For example, convert temperature from Celsius to Fahrenheit, not the other way around.
3. Use the following for converting input:

• 1 kilometer = 0.6 mile,
• 1 kilogram = 2.2 pounds,
• The formula for converting Celsius degree to Fahrenheit is:

F = (9/5)*C + 32where F is the temperature in Fahrenheit and C is the temperature in Celsius

4. Convert temperature to a whole numbersuch as 78, distance to two positions after decimal point (for example 84.56) and weight to one position after decimal point (For example 121.6).

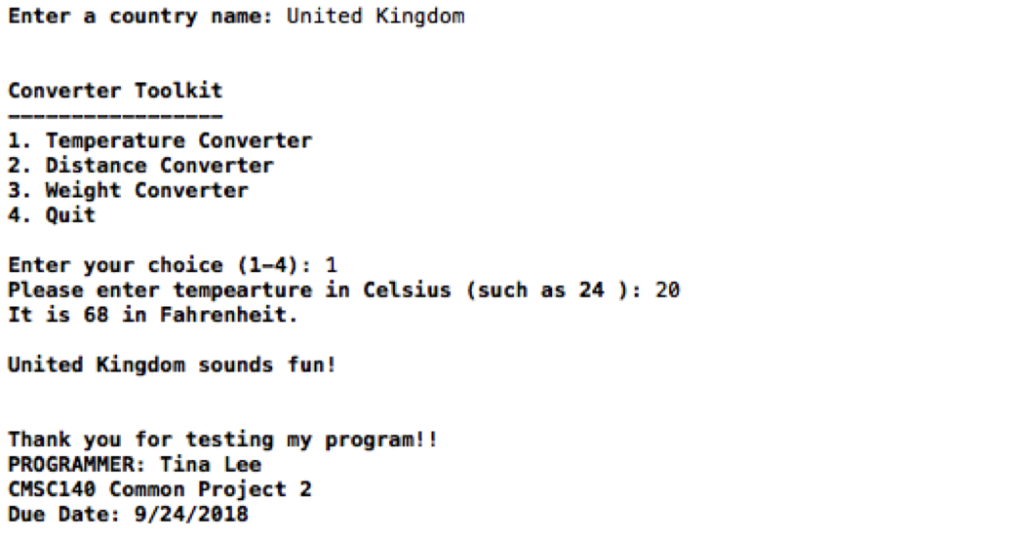

Sample Screen Output #1:

Sample Screen Output #2:

Enter a country name: Russia Converter Toolkit 1. Temperature Converter 2. Distance Converter 3. Weight Converter 4. Quit Enter your choice (1-4): 2 Please enter distance in Kilometer (such as 18.54 ): -8 !!! Program does not convert negative distance!!! Russia sounds fun! Thank you for testing my program!! PROGRAMMER: Tina Lee CMSC140 Common Project 2 Due Date: 9/24/2818 Program ended with exit code: Enter a country name: United Kingdom Converter Toolkit 1. Temperature Converter 2. Distance Converter 3. Weight Converter 4. Quit Enter your choice (1-4): 1 Please enter tempearture in Celsius (such as 24): 20 It is 68 in Fahrenheit United Kingdom sounds fun! Thank you for testing my program!! PROGRAMMER: Tina Lee CMSC140 Common Project 2 Due Date: 9/24/2018
