Question: ( c ) In Fig. 2 . 1 7 , r 1 = 3 0 m m . Determine the other dimensions by ensuring that

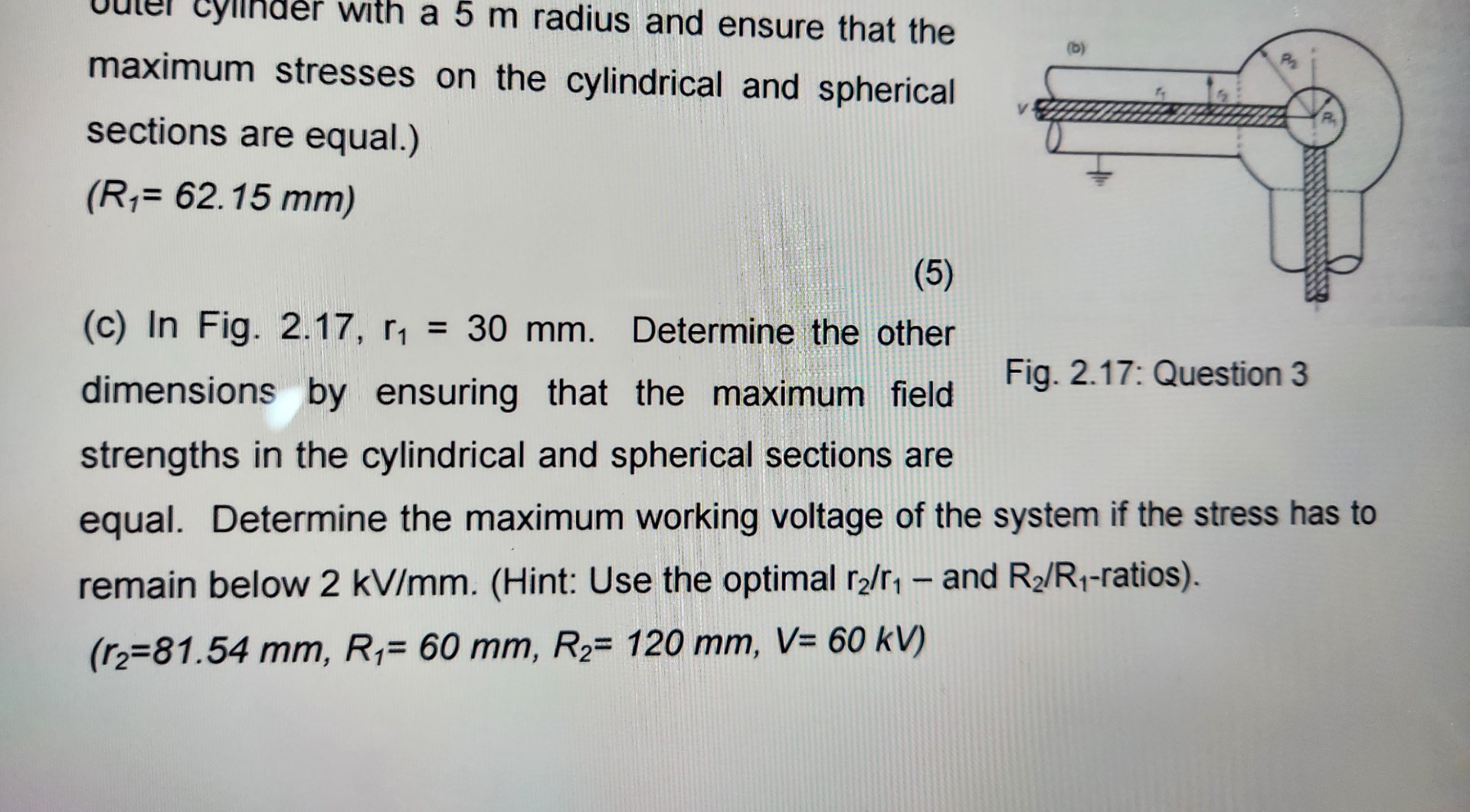

(c) In Fig. 2.17,r1=30mm. Determine the other dimensions by ensuring that the maximum field Fig. 2.17: Question 3 strengths in the cylindrical and spherical sections are equal. Determine the maximum working voltage of the system if the stress has to remain below 2kVmm.(Hint: Use the optimal r2r1- and R2R1-ratios).
( c ) In Fig. 2 . 1 7 , r 1 = 3 0 m m . Determine

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
