Question:
![image text in transcribed](https://s3.amazonaws.com/si.experts.images/answers/2024/05/6647809a3fe49_00966478099a928b.jpg)
Transcribed Image Text:

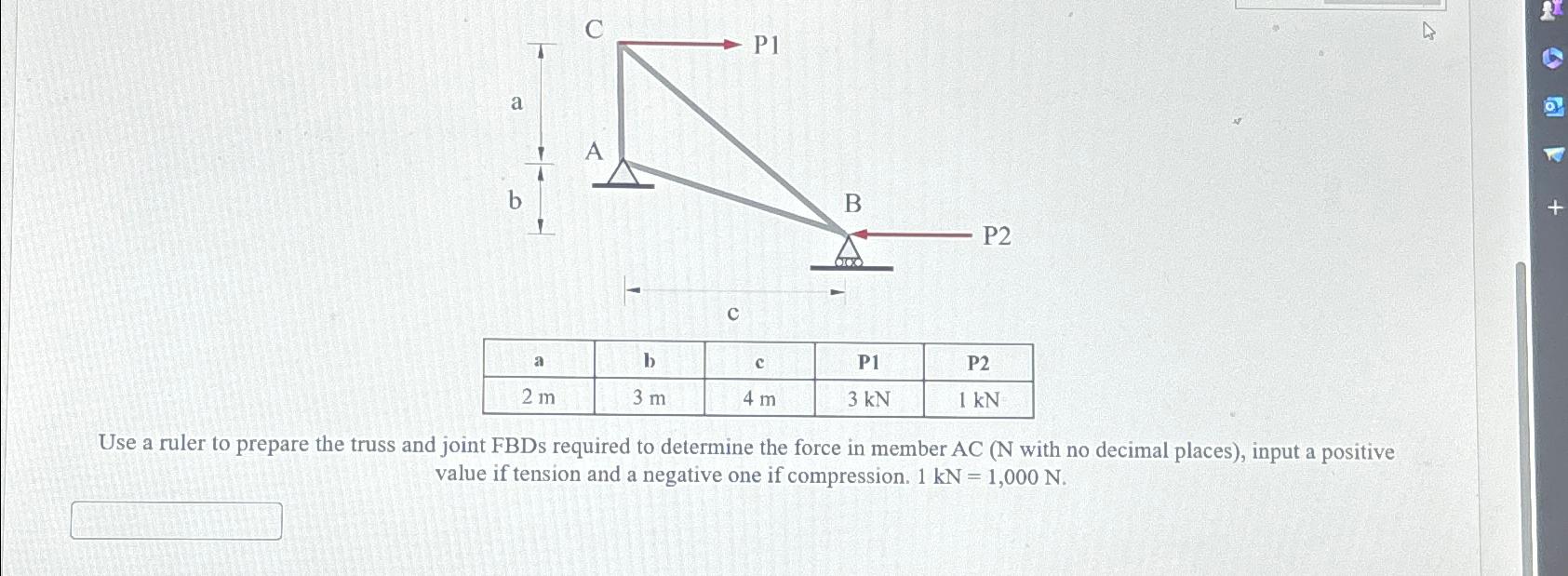

C Pl a b A B C P2 a b C P1 P2 2 m 3 m 4 m 3 kN 1 kN Use a ruler to prepare the truss and joint FBDS required to determine the force in member AC (N with no decimal places), input a positive value if tension and a negative one if compression. 1 kN 1,000 N. + C Pl a b A B C P2 a b C P1 P2 2 m 3 m 4 m 3 kN 1 kN Use a ruler to prepare the truss and joint FBDS required to determine the force in member AC (N with no decimal places), input a positive value if tension and a negative one if compression. 1 kN 1,000 N. +
