Project #$2$

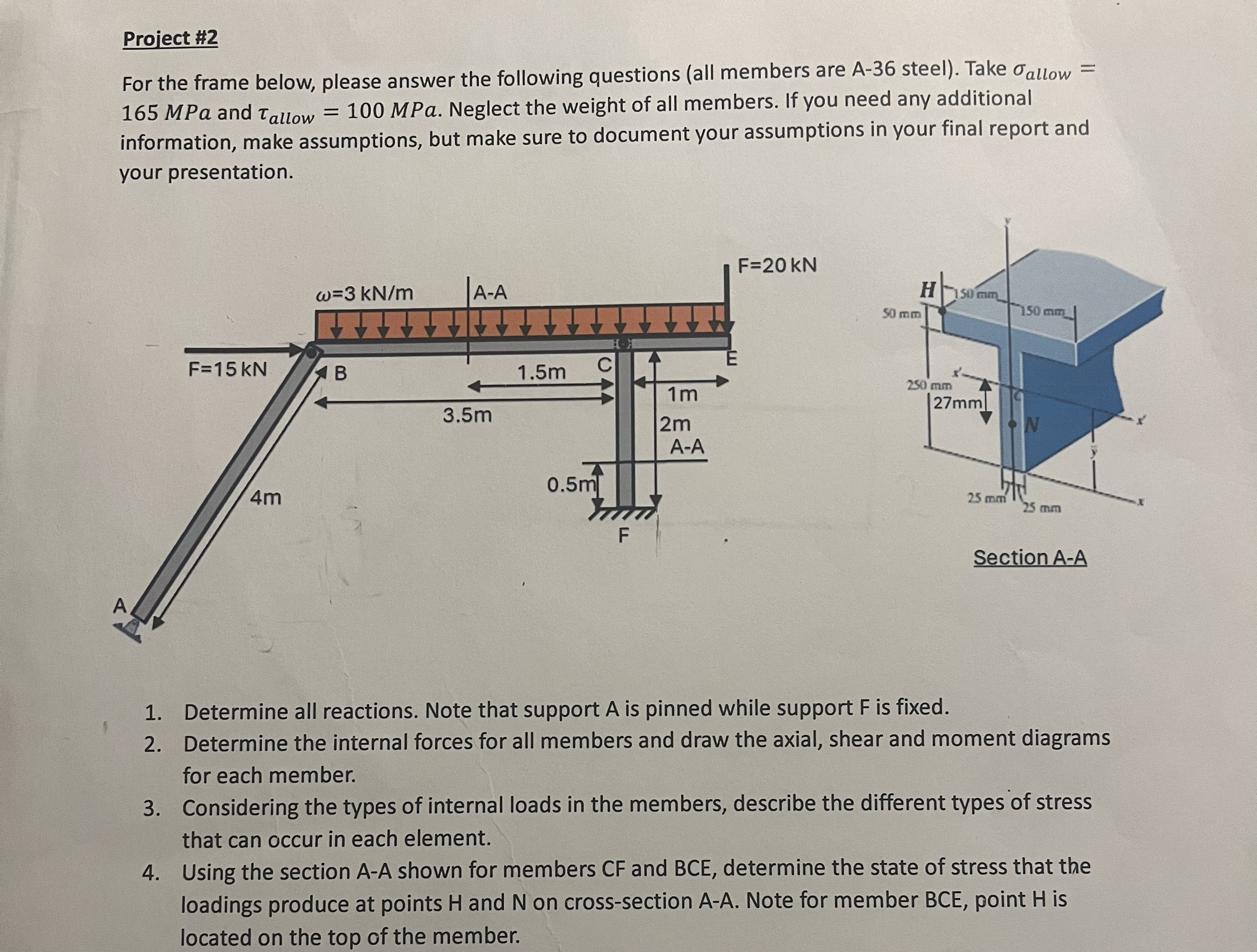

For the frame below, please answer the following questions $($all members are A$-36$ steel$).$ Take ${}_{\text{a}\text{l}\text{l}\text{o}\text{w}}=165$ MPa and ${}_{\text{a}\text{l}\text{l}\text{o}\text{w}}=100$MPa. Neglect the weight of all members. If you need any additional information, make assumptions, but make sure to document your assumptions in your final report and your presentation.

Determine all reactions. Note that support $A$ is pinned while support $F$ is fixed.

Determine the internal forces for all members and draw the axial, shear and moment diagrams for each member.

Considering the types of internal loads in the members, describe the different types of stress that can occur in each element.

Using the section A$-$A shown for members CF and BCE, determine the state of stress that the loadings produce at points H and N on cross$-$section $A-A.$ Note for member BCE, point H is located on the top of the member.
