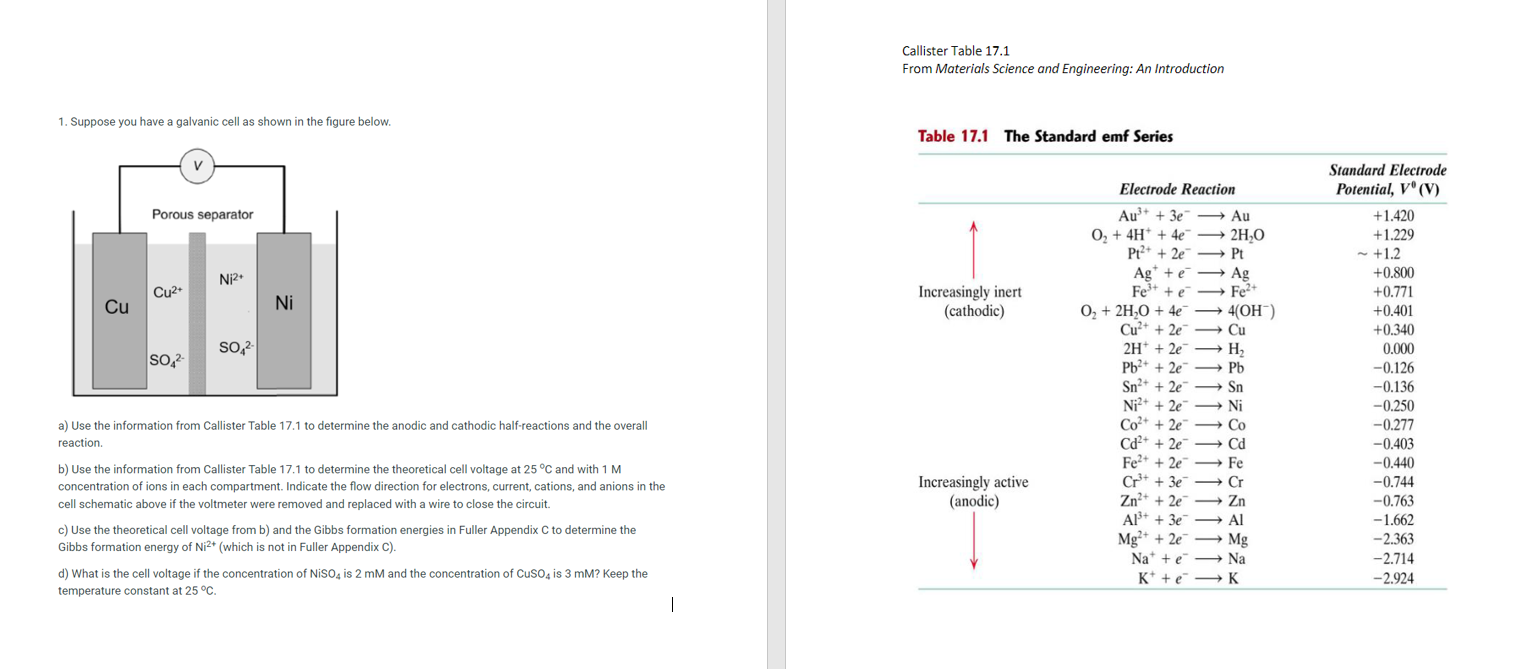

Callister Table 17.1 From Materials Science and Engineering: An Introduction 1. Suppose you have a galvanic cell as shown in the figure below. Table 17.1 The Standard emf Series a) Use the information from Callister Table 17.1 to determine the anodic and cathodic half-reactions and the overall reaction. b) Use the information from Callister Table 17.1 to determine the theoretical cell voltage at 25C and with 1M concentration of ions in each compartment. Indicate the flow direction for electrons, current, cations, and anions in the cell schematic above if the voltmeter were removed and replaced with a wire to close the circuit. c) Use the theoretical cell voltage from b) and the Gibbs formation energies in Fuller Appendix C to determine the Gibbs formation energy of Ni2+ (which is not in Fuller Appendix C). d) What is the cell voltage if the concentration of NiSO4 is 2mM and the concentration of CuSO4 is 3mMmKeepthe temperature constant at 25C
