Can anyone please help me solving this problem either by hand written or using logixPro

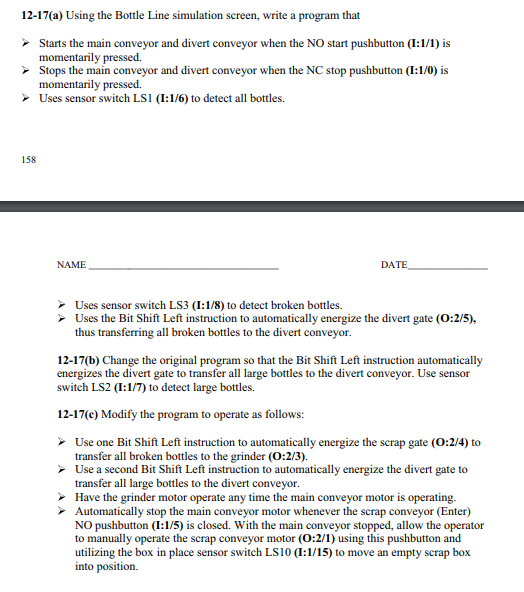

12-17(a) Using the Bottle Line simulation screen, write a program that Starts the main conveyor and divert conveyor when the NO start pushbutton (I:1/1) is momentarily pressed. Stops the main conveyor and divert conveyor when the NC stop pushbutton (I:1/0) is momentarily pressed. Uses sensor switch LS1 (I:1/6) to detect all bottles. 158 NAME DAT Uses sensor switch LS3 (I:1/8) to detect broken bottles. Uses the Bt Shift Left instruction to automatically energize the divert gate (O:2/5), thus transferring all broken bottles to the divert conveyor 12-17(b) Change the original program so that the Bit Shift Left instruction automatically energizes the divert gate to transfer all large bottles to the divert conveyor. Use sensor switch LS2 (I:1/7) to detect large bottles. 12-17(c) Modify the program to operate as follows: Use one Bit Shift Left instruction to automatically energize the scrap gate (O:2/4) to transfer all broken bottles to the grinder (O:2/3) Use a second Bit Shift Left instruction to automatically energize the divert gate to transfer all large bottles to the divert conveyor Have the grinder motor operate any time the main conveyor motor is operating. Automatically stop the main conveyor motor whenever the scrap conveyor (Enter) NO pushbutton (I:1/5) is closed. With the main conveyor stopped, allow the operator to manually operate the scrap conveyor motor (O:2/1) using this pushbutton and utilizing the box in place sensor switch LS10 (I:1/15) to move an empty scrap box into position. 12-17(a) Using the Bottle Line simulation screen, write a program that Starts the main conveyor and divert conveyor when the NO start pushbutton (I:1/1) is momentarily pressed. Stops the main conveyor and divert conveyor when the NC stop pushbutton (I:1/0) is momentarily pressed. Uses sensor switch LS1 (I:1/6) to detect all bottles. 158 NAME DAT Uses sensor switch LS3 (I:1/8) to detect broken bottles. Uses the Bt Shift Left instruction to automatically energize the divert gate (O:2/5), thus transferring all broken bottles to the divert conveyor 12-17(b) Change the original program so that the Bit Shift Left instruction automatically energizes the divert gate to transfer all large bottles to the divert conveyor. Use sensor switch LS2 (I:1/7) to detect large bottles. 12-17(c) Modify the program to operate as follows: Use one Bit Shift Left instruction to automatically energize the scrap gate (O:2/4) to transfer all broken bottles to the grinder (O:2/3) Use a second Bit Shift Left instruction to automatically energize the divert gate to transfer all large bottles to the divert conveyor Have the grinder motor operate any time the main conveyor motor is operating. Automatically stop the main conveyor motor whenever the scrap conveyor (Enter) NO pushbutton (I:1/5) is closed. With the main conveyor stopped, allow the operator to manually operate the scrap conveyor motor (O:2/1) using this pushbutton and utilizing the box in place sensor switch LS10 (I:1/15) to move an empty scrap box into position
