Question: Can i get e , f , g , and h please!: ) An existing simple curve has = 3 2 1 2 ' 3

Can i get e,f,g,and h please!:)

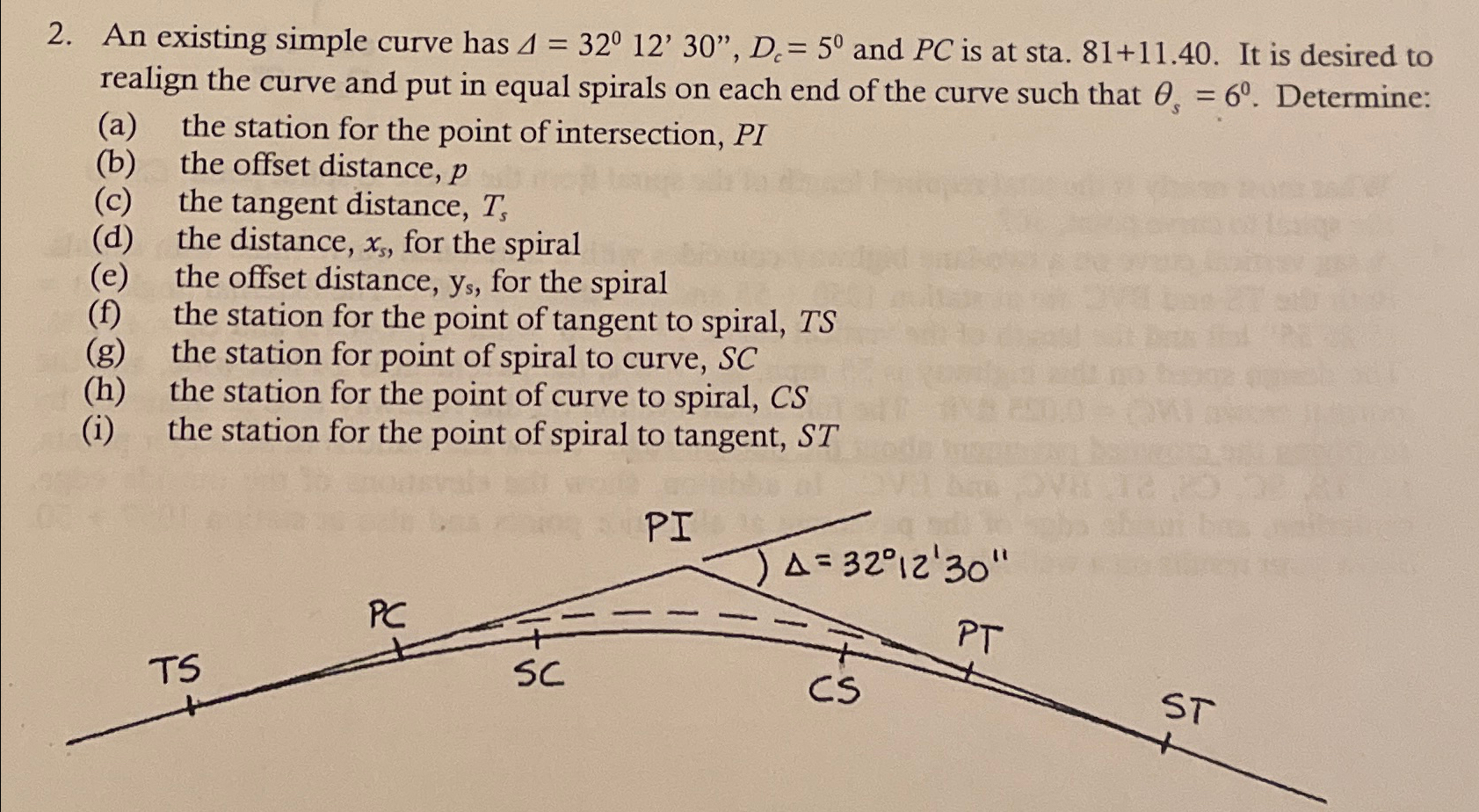

An existing simple curve has =3212'30'',Dc=5 and PC is at sta. 81+11.40. It is desired to realign the curve and put in equal spirals on each end of the curve such that s=6. Determine:
(a) the station for the point of intersection, ?PI
(b) the offset distance, p
(c) the tangent distance, Ts
(d) the distance, xs, for the spiral
(e) the offset distance, ys, for the spiral
(f) the station for the point of tangent to spiral, TS
(g) the station for point of spiral to curve, SC
(h) the station for the point of curve to spiral, CS
(i) the station for the point of spiral to tangent, ST
Can i get e , f , g , and h please!: ) An
