Question: Can someone help with using the one hot method on this problem ? The following sequential circuit uses 4 D flip-flops and was designed using

Can someone help with using the one hot method on this problem ?

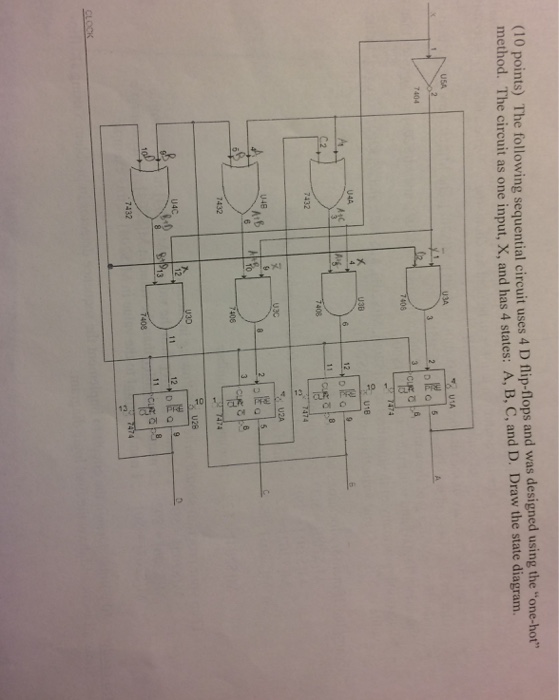

The following sequential circuit uses 4 D flip-flops and was designed using the "one-hot" method. The circuit as one input, x, and has 4 states: a, b, c and D. Draw the state diagram

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
