Question: Can someone please assist in solving the question below fully. Please use Hardy Cross table to solve. Please find table attached below which will assist

Can someone please assist in solving the question below fully. Please use Hardy Cross table to solve.

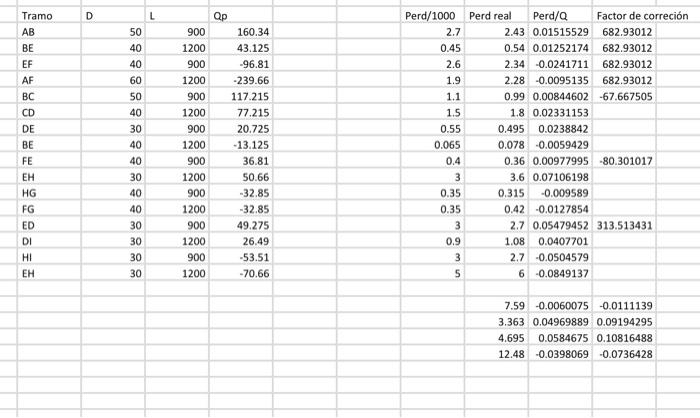

Please find table attached below which will assist in completing the problem.

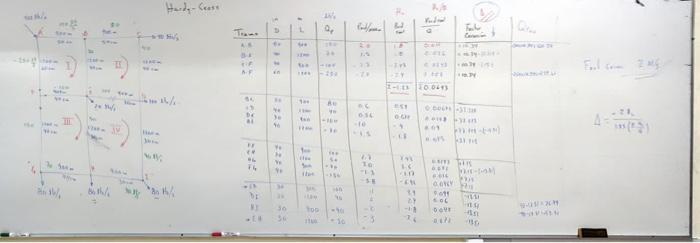

Listed is a table of iteration 2 which can be compared, it may be wrong.
 Can someone please assist in solving the question below fully. Please
use Hardy Cross table to solve.Please find table attached below which will
assist in completing the problem. Listed is a table of iteration 2

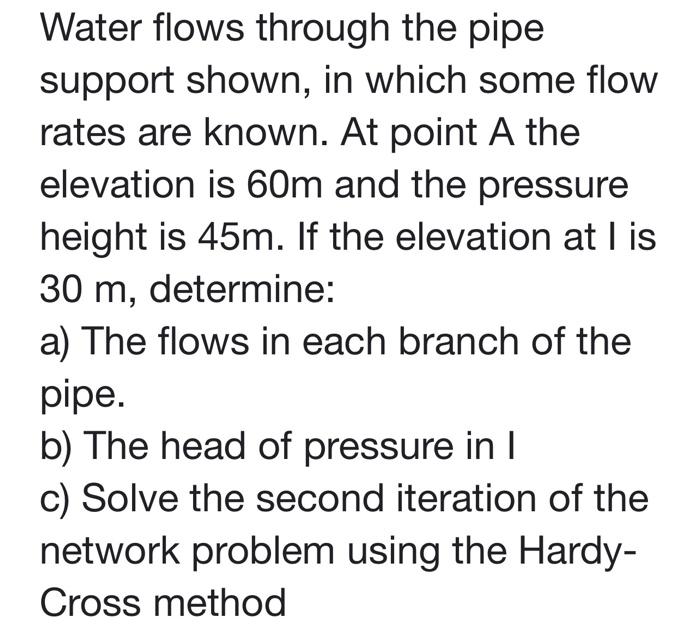

Water flows through the pipe support shown, in which some flow rates are known. At point A the elevation is 60m and the pressure height is 45m. If the elevation at I is 30m, determine: a) The flows in each branch of the pipe. b) The head of pressure in I c) Solve the second iteration of the network problem using the HardyCross method Water flows through the pipe support shown, in which some flow rates are known. At point A the elevation is 60m and the pressure height is 45m. If the elevation at I is 30m, determine: a) The flows in each branch of the pipe. b) The head of pressure in I c) Solve the second iteration of the network problem using the HardyCross method
