Question: Can someone solve this problem? (17%) Problem 4: Three capacitors and a battery are connected as shown. The capacitance values ar C1 = 3.6 MF,
Can someone solve this problem?

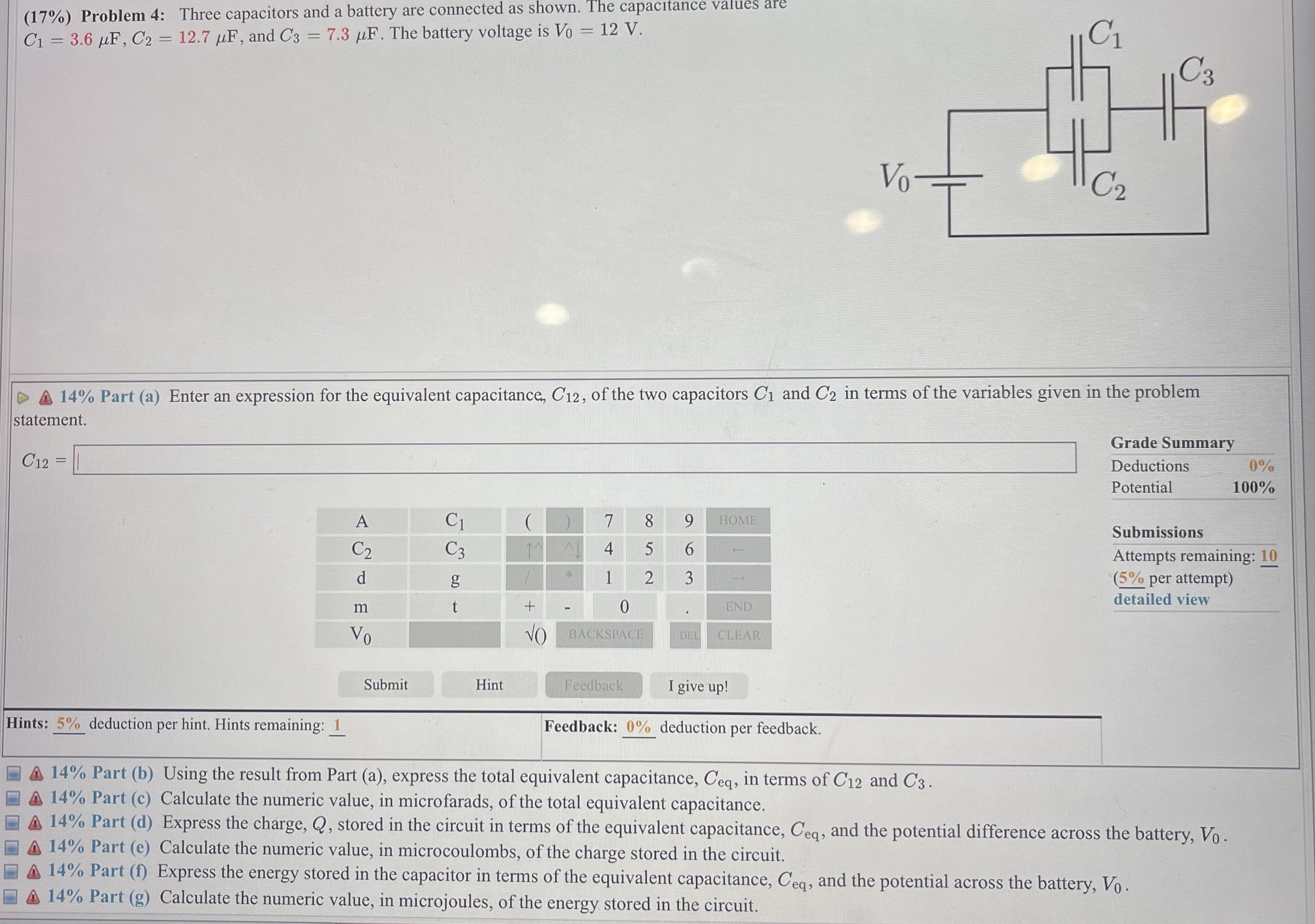

(17%) Problem 4: Three capacitors and a battery are connected as shown. The capacitance values ar C1 = 3.6 MF, C2 = 12.7 MF, and C3 = 7.3 MF. The battery voltage is Vo = 12 V. Vo D A 14% Part (a) Enter an expression for the equivalent capacitance, C12, of the two capacitors C1 and C2 in terms of the variables given in the problem statement. Grade Summary C12 = Deductions 0% Potential 100% A 8 9 HOME Submissions C2 C3 6 Attempts remaining: 10 d g 3 (5% per attempt) detailed view m END Vo NO BACKSPACE CLEAR Submit Hint Feedback I give up! Hints: 5% deduction per hint. Hints remaining: 1 Feedback: 0% deduction per feedback. 14% Part (b) Using the result from Part (a), express the total equivalent capacitance, Ceq, in terms of C12 and C3. 4 14% Part (c) Calculate the numeric value, in microfarads, of the total equivalent capacitance. 4 14% Part (d) Express the charge, Q, stored in the circuit in terms of the equivalent capacitance, Ceq, and the potential difference across the battery, Vo. 14% Part (e) Calculate the numeric value, in microcoulombs, of the charge stored in the circuit. 14% Part (f) Express the energy stored in the capacitor in terms of the equivalent capacitance, Ceq, and the potential across the battery, Vo. 14% Part (g) Calculate the numeric value, in microjoules, of the energy stored in the circuit
