Question: Can you answer this Structural Analysis Question and implement all the necessary explanations and formulas? Example: Given the Plan & Section Below, calculate the

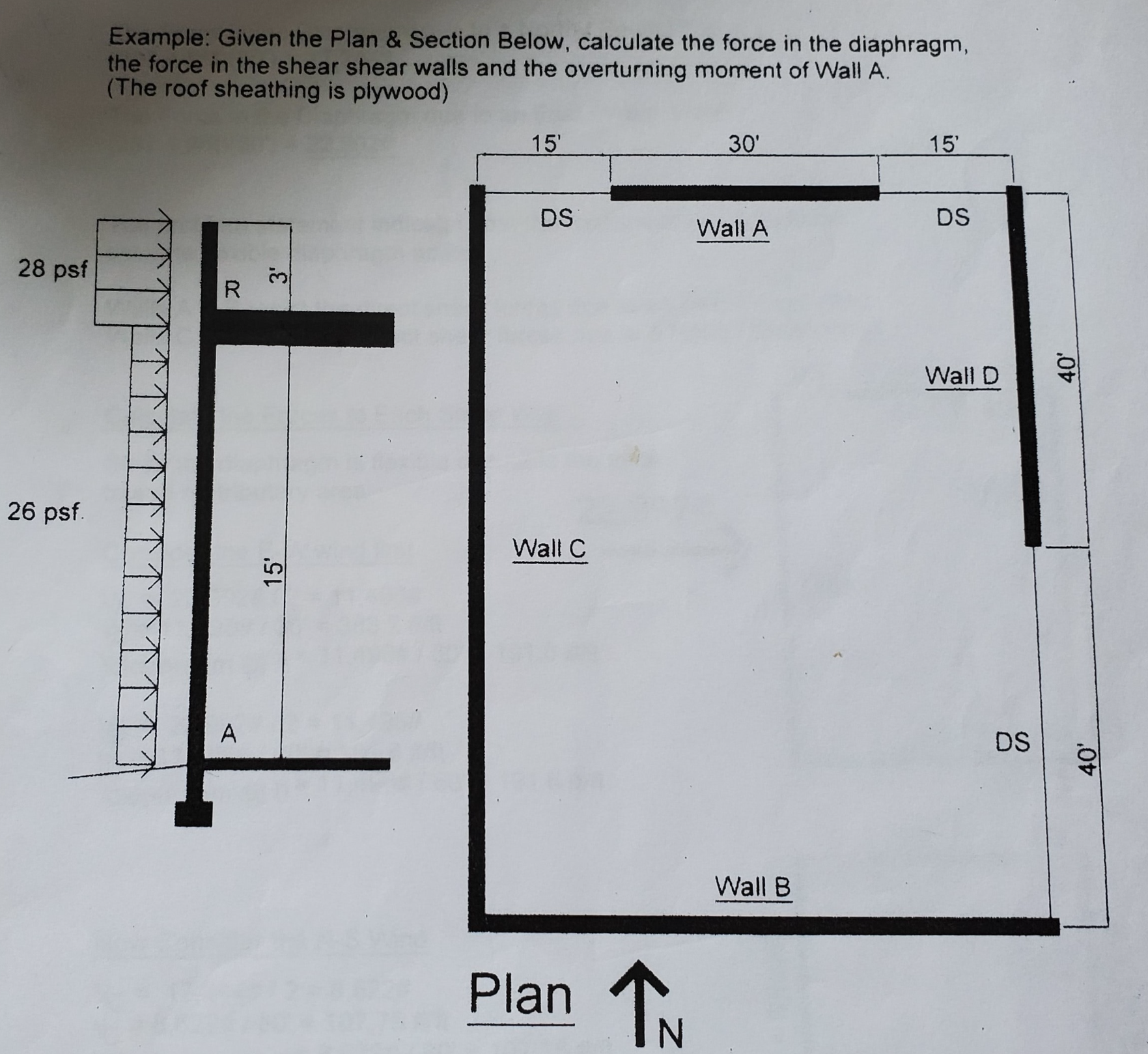

Can you answer this Structural Analysis Question and implement all the necessary explanations and formulas? Example: Given the Plan \& Section Below, calculate the force in the diaphragm, the force in the shear shear walls and the overturning moment of Wall \( A \).
(The roof sheathing is plywood)
Plan \(\mathcal{T}_{N}\)
Can you answer this Structural Analysis Question

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
