Question: Can you be detailed at the STEP FUNCTION. Thats all. Thanks! A beam ABC rests on roller support at B and a fixed support at
Can you be detailed at the STEP FUNCTION. Thats all. Thanks!

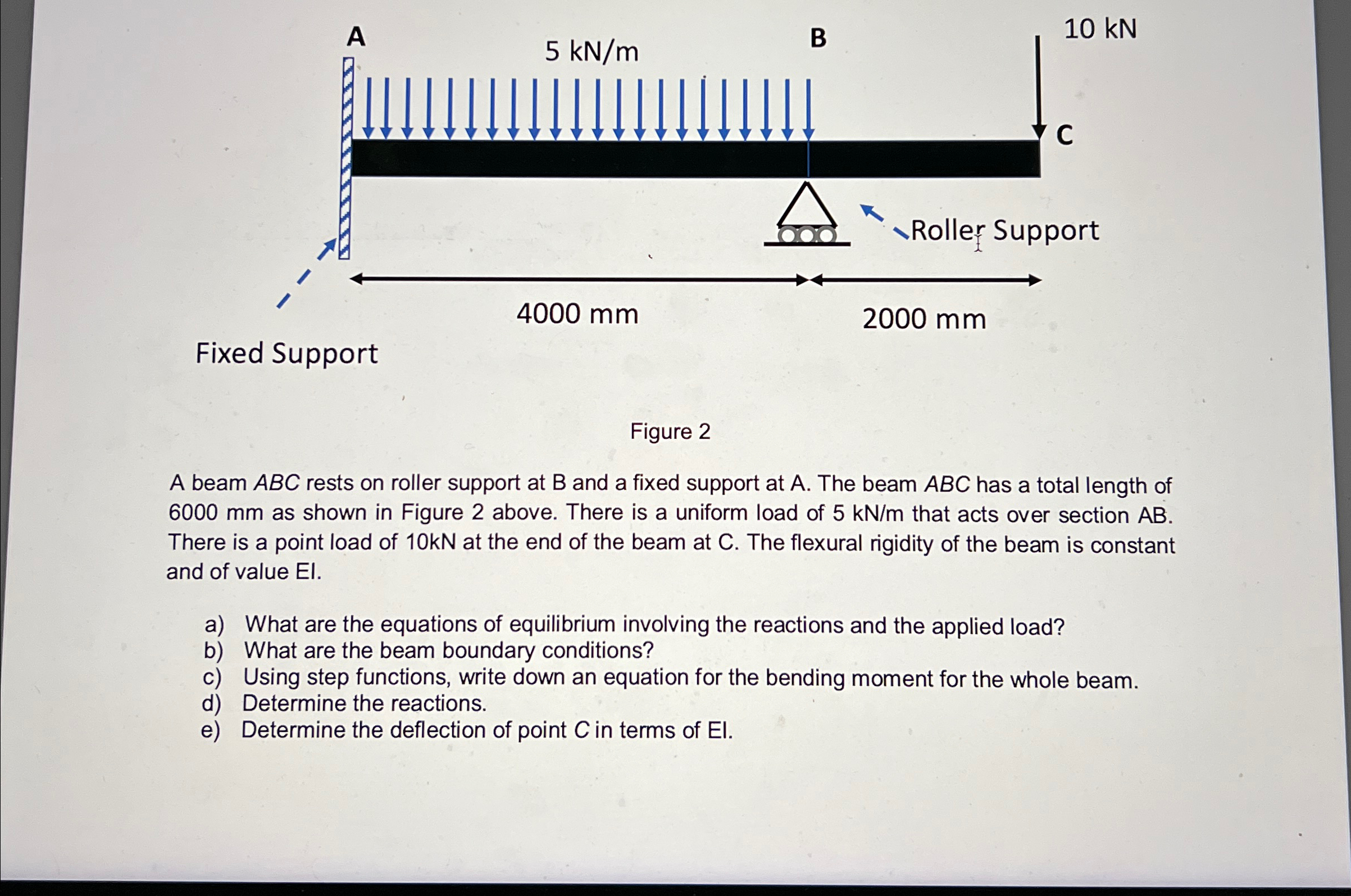

A beam ABC rests on roller support at and a fixed support at The beam ABC has a total length of as shown in Figure above. There is a uniform load of that acts over section There is a point load of at the end of the beam at The flexural rigidity of the beam is constant and of value EI
a What are the equations of equilibrium involving the reactions and the applied load?
b What are the beam boundary conditions?
c Using step functions, write down an equation for the bending moment for the whole beam.
d Determine the reactions.
e Determine the deflection of point in terms of EI
