Question: Can you help me with this problem? Something different than AI - i ) A tank with square cross section measuring 1 1 m by

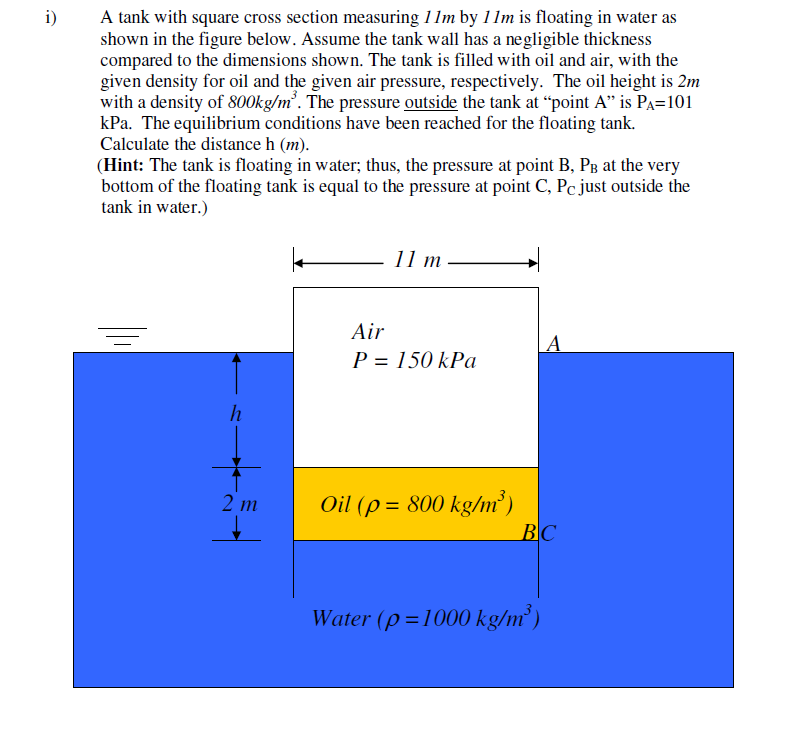

Can you help me with this problem? Something different than AI - i) A tank with square cross section measuring 11 m by 11 m is floating in water as shown in the figure below. Assume the tank wall has a negligible thickness compared to the dimensions shown. The tank is filled with oil and air, with the given density for oil and the given air pressure, respectively. The oil height is 2 m with a density of \(800\mathrm{~kg}/\mathrm{m}^{3}\). The pressure outside the tank at "point A " is \(\mathrm{P}_{\mathrm{A}}=101\) kPa . The equilibrium conditions have been reached for the floating tank. Calculate the distance \(\mathrm{h}(\mathrm{m})\).
(Hint: The tank is floating in water; thus, the pressure at point \(\mathrm{B},\mathrm{P}_{\mathrm{B}}\) at the very bottom of the floating tank is equal to the pressure at point \(\mathrm{C},\mathrm{P}_{\mathrm{C}}\) just outside the tank in water.)
Can you help me with this problem? Something

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
