Question: can you please help me solve this problem QUESTION 3 [16] A 5 kg block, resting on a rough horizontal 60 N table, is connected

can you please help me solve this problem

can you please help me solve this problem QUESTION 3 [16] A

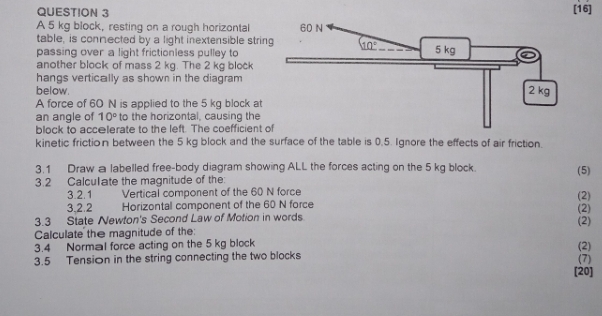

QUESTION 3 [16] A 5 kg block, resting on a rough horizontal 60 N table, is connected by a light inextensible string passing over a light frictionless pulley to 5 kg another block of mass 2 kg. The 2 kg block hangs vertically as shown in the diagram below. 2 kg A force of 60 N is applied to the 5 kg block at an angle of 10" to the horizontal, causing the block to accelerate to the left The coefficient of kinetic friction between the 5 kg block and the surface of the table is 0.5. Ignore the effects of air friction. 3.1 Draw a labelled free-body diagram showing ALL the forces acting on the 5 kg block. (5) 3.2 Calculate the magnitude of the 3.2.1 Vertical component of the 60 N force (2) 3.2.2 Horizontal component of the 60 N force 3.3 State Newton's Second Law of Motion in words Calculate the magnitude of the: 3.4 Normal force acting on the 5 kg block (2) 3.5 Tension in the string connecting the two blocks [20]
