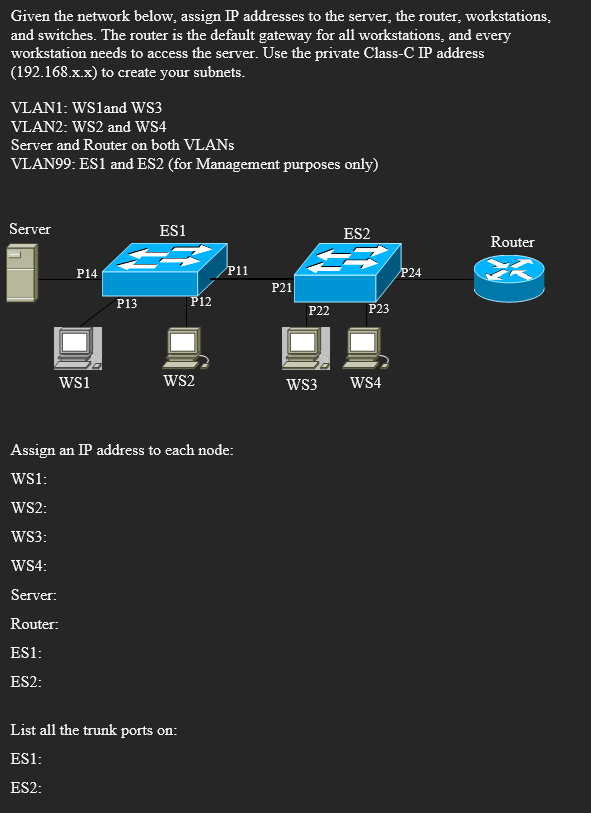

Can you verify my answer is correct? $(14$ points$)$ Given the network below, assign IP addresses to the server, the router, workstations, and switches. The router is the default gateway for all workstations, and every workstation needs to access the server. Use the private Class$-$C IP address range $(192\mathrm{.}168.$x$.$x$)$ to create your subnets and assign addresses.$$VLAN$1$: WS$1$and WS$3$VLAN$2$: WS$2$ and WS$4$Server and Router on both VLANs $($server and router use sub$-$interfaces$)$VLAN$99$: ES$1$ and ES$2($for Management purposes only$)$

Here is my answer: Assign an IP address to each node: VLAN$1192\mathrm{.}168\mathrm{.}1\mathrm{.}0/24,$ VLAN$2192\mathrm{.}168\mathrm{.}2\mathrm{.}0/24,$ VLAN$99192\mathrm{.}168\mathrm{.}99\mathrm{.}0/24$

WS$1$: $192\mathrm{.}168\mathrm{.}1\mathrm{.}2$

WS$2$:$192\mathrm{.}168\mathrm{.}2\mathrm{.}2$

WS$3$: $192\mathrm{.}168\mathrm{.}1\mathrm{.}3$

WS$4$:$192\mathrm{.}168\mathrm{.}2\mathrm{.}3$

Server: $192\mathrm{.}168\mathrm{.}2\mathrm{.}10$

Router: $192\mathrm{.}168\mathrm{.}2\mathrm{.}1$

ES$1$: $192\mathrm{.}168\mathrm{.}99\mathrm{.}2$

ES$2$: $192\mathrm{.}168\mathrm{.}99\mathrm{.}3$

List all the trunk ports on:

ES$1$:P$11$ and P$14$

ES$2$: P$21$ and P$24$
