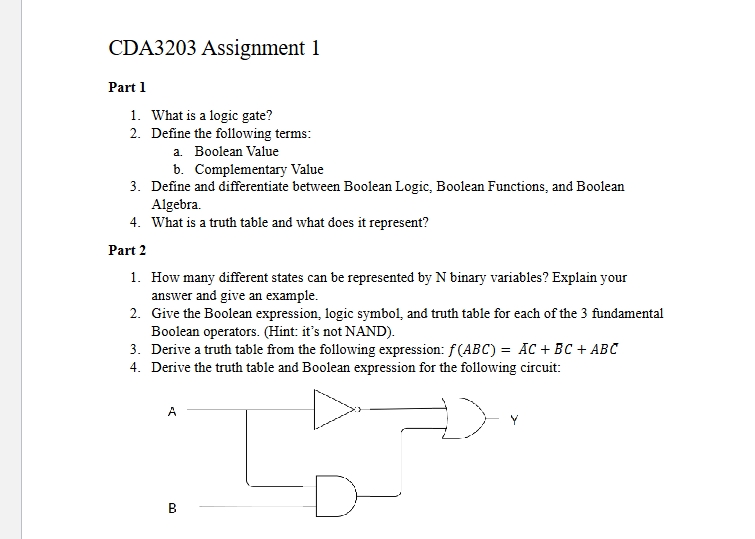

CDA$3203$ Assignment $1$

Part $1$

$1.$ What is a logic gate?

$2.$ Define the following terms:

a$.$ Boolean Value

b$.$ Complementary Value

$3.$ Define and differentiate between Boolean Logic, Boolean Functions, and Boolean Algebra.

$4.$ What is a truth table and what does it represent?

Part $2$

$1.$ How many different states can be represented by N binary variables? Explain your answer and give an example.

$2.$ Give the Boolean expression, logic symbol, and truth table for each of the $3$ fundamental Boolean operators. $($Hint: it's not NAND$).$

$3.$ Derive a truth table from the following expression: $\backslash ($ f$($A B C$)=$A C$+$B C$+$A B C $\backslash )$

$4.$ Derive the truth table and Boolean expression for the following circuit:
