Question: CE 3 5 9 - Structural Analysis I Homework # 8 Due: Monday Dec 9 , 2 0 2 4 at 9 : 0 0

CE359-Structural Analysis I Homework #8
Due: Monday Dec 9,2024 at 9:00am

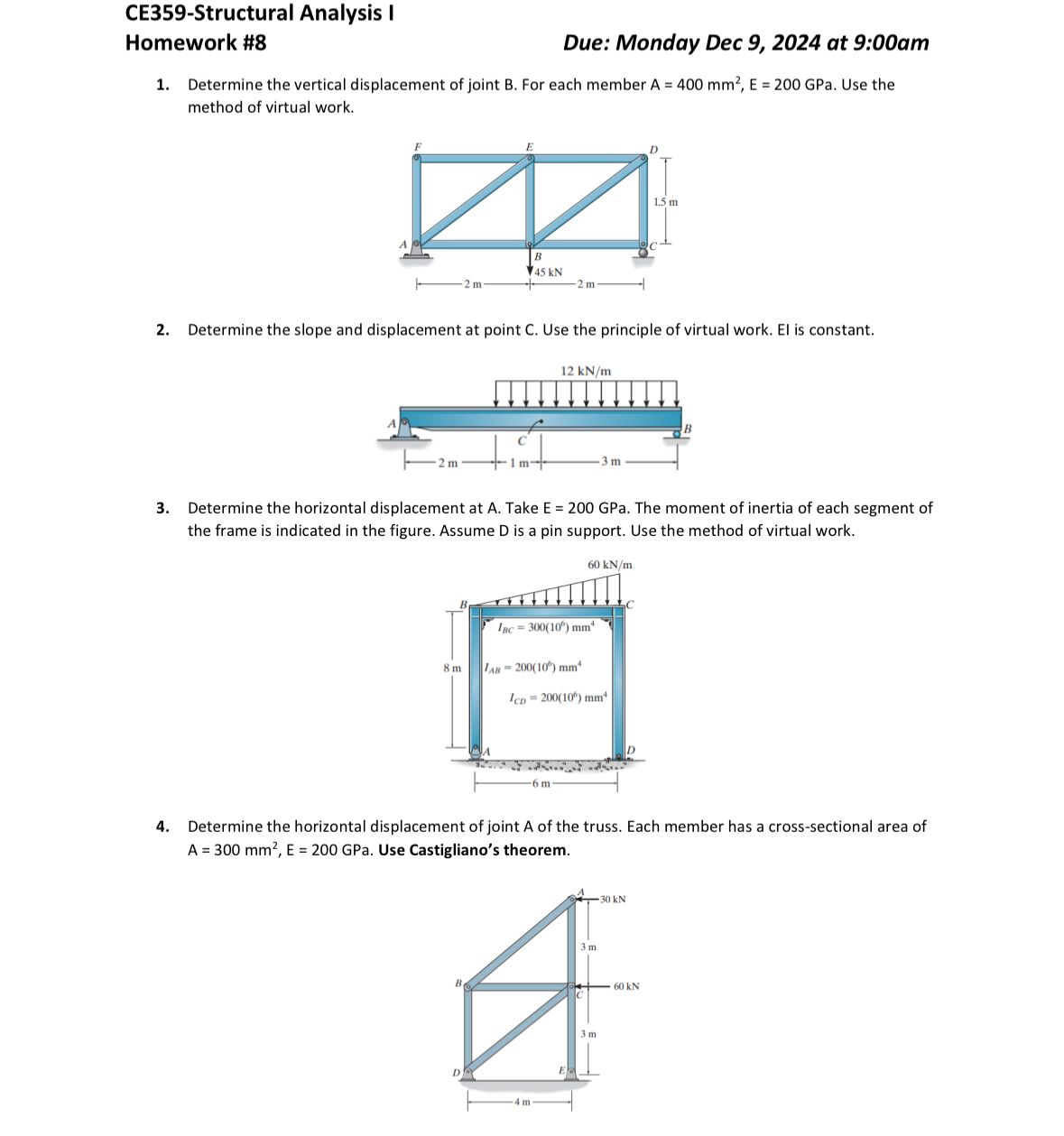

Determine the vertical displacement of joint B. For each member A=400mm2,E=200GPa. Use the method of virtual work.
Determine the slope and displacement at point C . Use the principle of virtual work. El is constant.
Determine the horizontal displacement at A . Take E=200GPa. The moment of inertia of each segment of the frame is indicated in the figure. Assume D is a pin support. Use the method of virtual work.
Determine the horizontal displacement of joint A of the truss. Each member has a cross-sectional area of A=300mm2,E=200GPa. Use Castigliano's theorem.
