Question: CETT 1 4 4 1 4 / 2 8 / 2 0 2 1 CLASSWORK CHAPTER 6 REMEMBER, R c HAS TWO DIFFERENT CURRENTS Fill

CETT 1441
4/28/2021
CLASSWORK CHAPTER 6
REMEMBER, Rc HAS TWO DIFFERENT CURRENTS

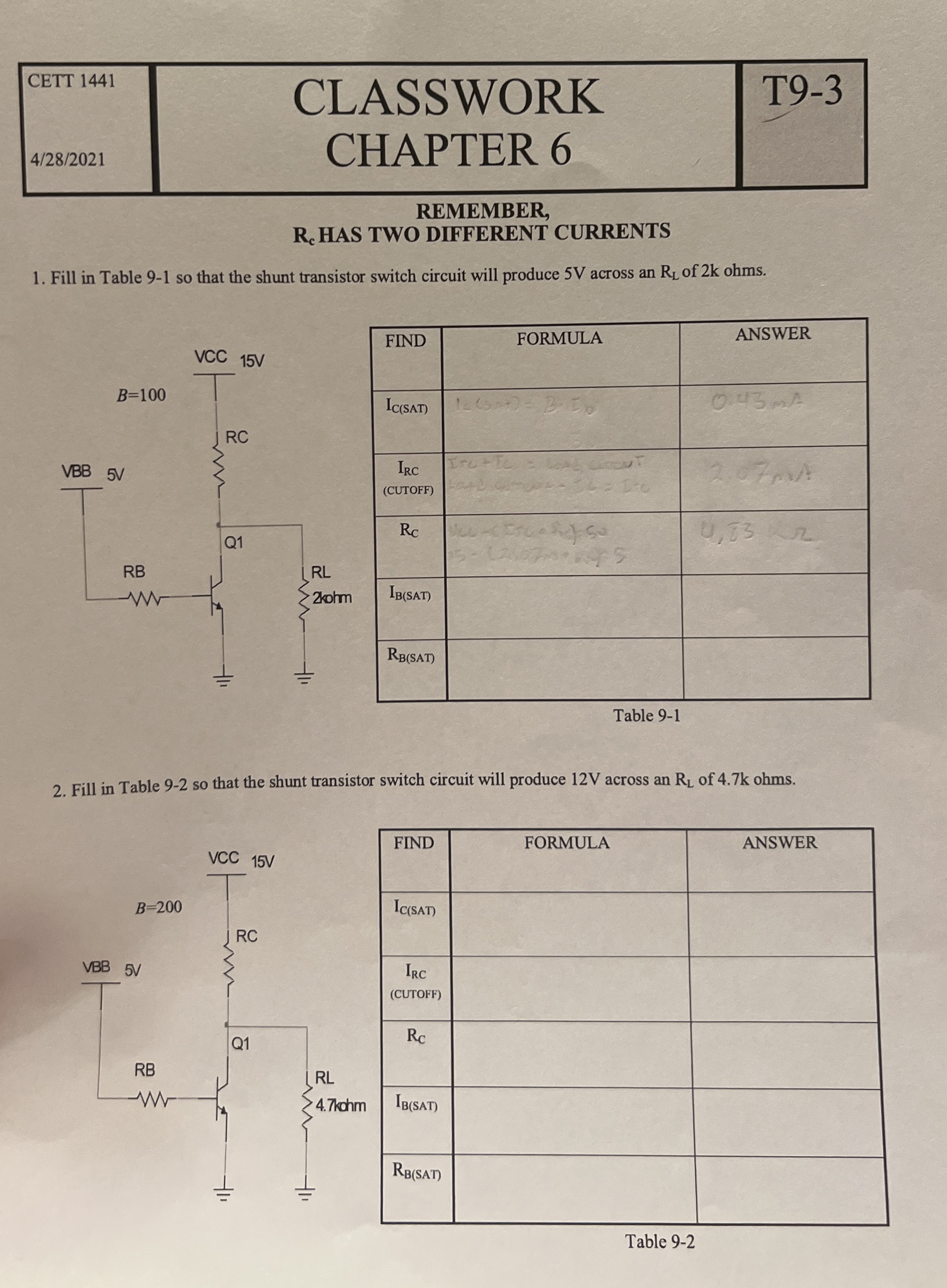

Fill in Table 9-1 so that the shunt transistor switch circuit will produce 5 V across an RL of 2 k ohms.
\table[[FIND,FORMULA,ANSWER],[IC(SAT),,],[\table[[IRC
CETT 1 4 4 1 4 / 2 8 / 2 0 2 1 CLASSWORK CHAPTER

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
