Question: [ Ch 3 - 2 ] Given a single degree - of - freedom system of spring - mass - damper system shown below Derive

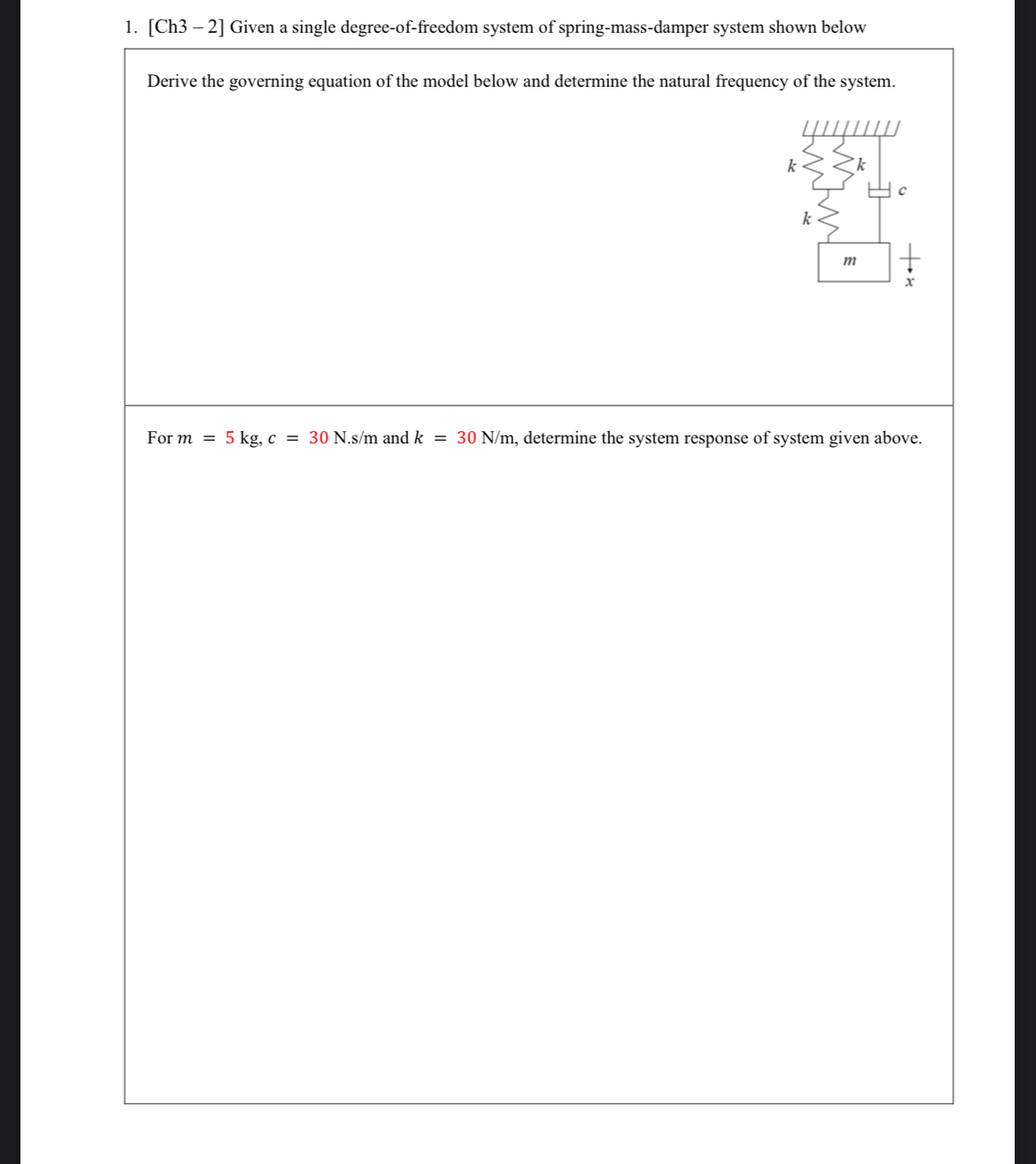

[Ch3-2] Given a single degree-of-freedom system of spring-mass-damper system shown below
Derive the governing equation of the model below and determine the natural frequency of the system.
For m=5kg,c=30N.sm and k=30Nm, determine the system response of system given above.
[ Ch 3 - 2 ] Given a single degree - of - freedom

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
