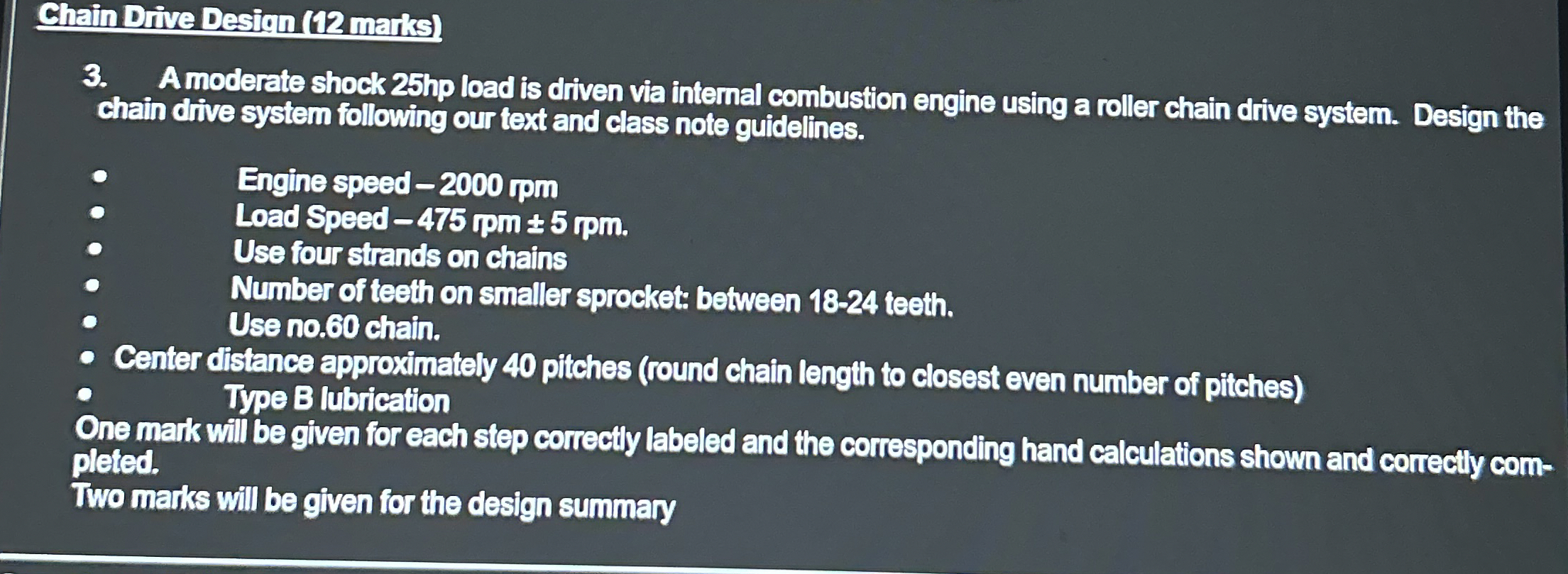

Chain Dive Desien $(12$ maths$)$

A moderate shock $25$ hp load is driven via internal combustion engine using a roller chain drive system. Design the

chain dive system following our text and class note guidelines.

Engine speed$-2000$ rpm

Load Speed $-475rpm+-5rpm.$

Use four strands on chains

Number of teeth on smaller sprocket: between $18-24$ teeth.

Center dse no$.60$ chain.

$,$ Tritare approximately $40$ pilches $($round chain length to closest even number of pitches$)$

One mark type B lubrication

pleted.

Two marks will be given for the design summary
