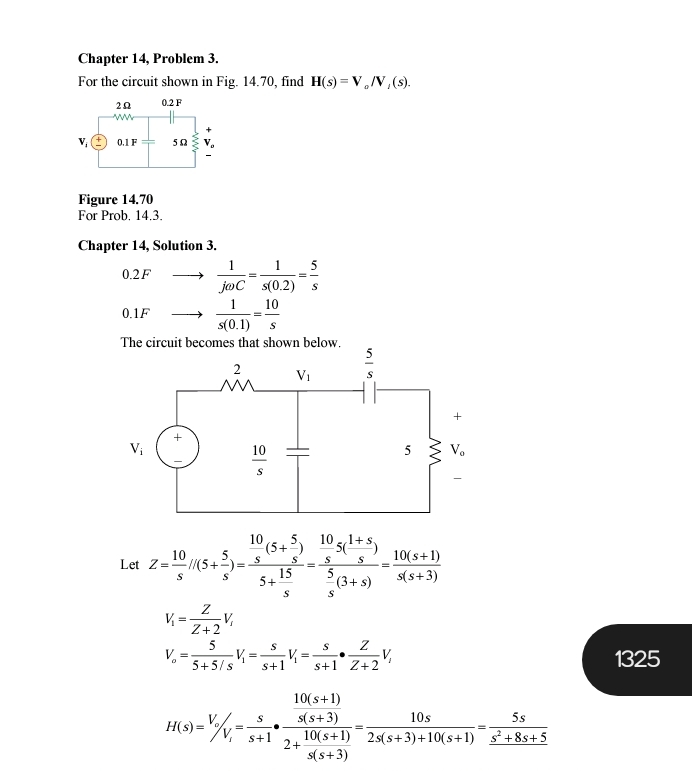

Chapter $14,$ Problem $3.$

For the circuit shown in Fig. $14\mathrm{.}70,$ find $H(s)=\frac{V_o}{V_l}(s).$

Figure $14\mathrm{.}70$

For Prob. $14\mathrm{.}3.$

Chapter $14,$ Solution $3.$

$0\mathrm{.}2$Flongrightarrow$\frac{1}{jC}=\frac{1}{s(0\mathrm{.}2)}=\frac{5}{s}$

$0\mathrm{.}1$Flongrightarrow$\frac{1}{s(0\mathrm{.}1)}=\frac{10}{s}$

The circuit becomes that shown below.

Let $Z=\frac{10}{s}\frac{\frac{?}{?}}{5+\frac{5}{s}}=\frac{\frac{10}{s}(5+\frac{5}{s})}{5+\frac{15}{s}}=\frac{\frac{10}{s}5(\frac{1+s}{s})}{\frac{5}{s}(3+s)}=\frac{10(s+1)}{s(s+3)}$

$1325$

The professor asked that we find a question and change the wording of the question or something similar, and if the idea of $$change is nice, he will give us grades on the subject of Laplace. This question I want you to give me ideas to add or delete something so that the question changes to give a strong idea. Change the question and its solution
