Question: CHAPTER 2 FORCE VECTORS * 2 - 8 4 . Determine the magnitudes of the components of F acting along and perpendicular to segment B

CHAPTER 2 FORCE VECTORS

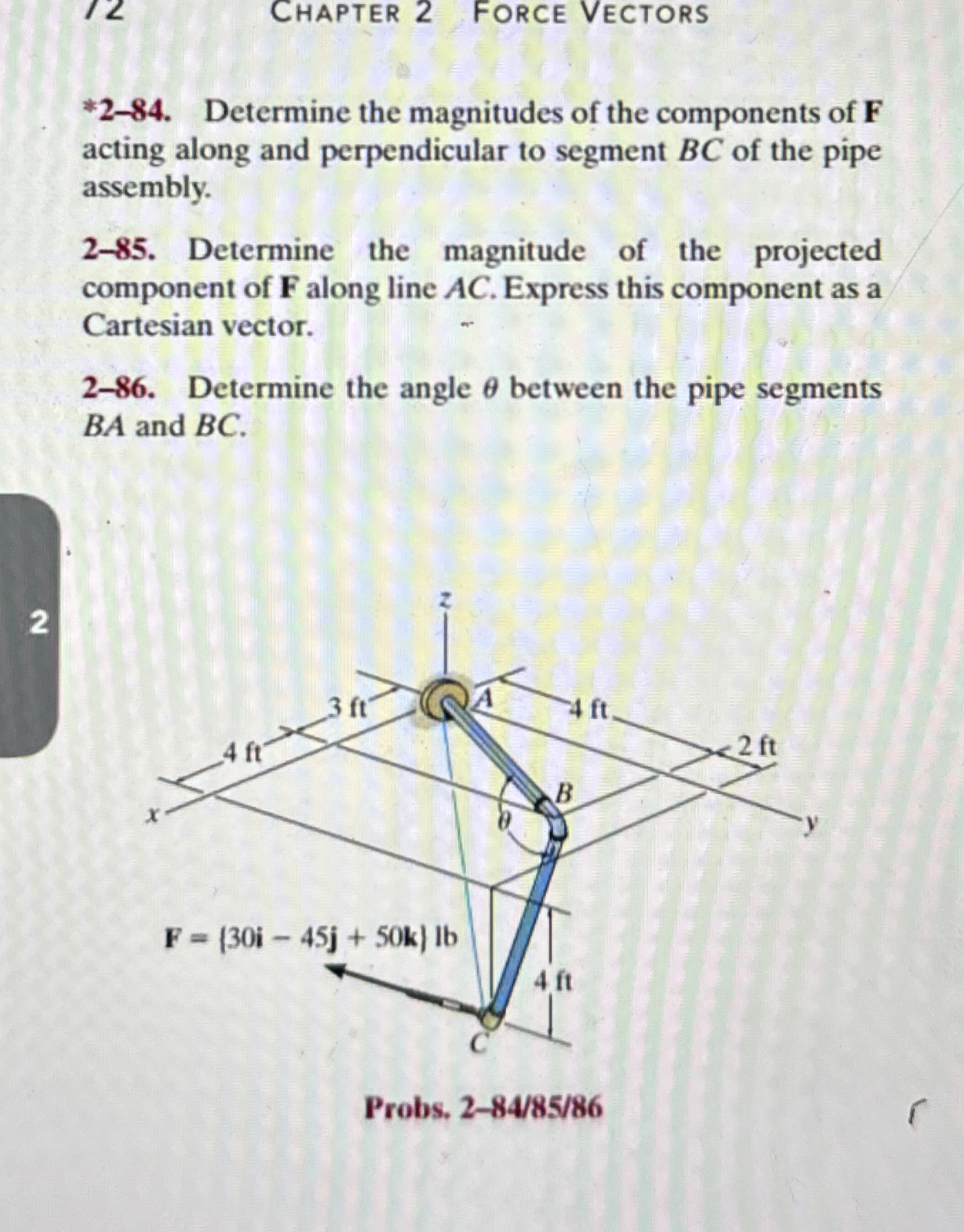

*2-84. Determine the magnitudes of the components of F acting along and perpendicular to segment BC of the pipe assembly.
2-85. Determine the magnitude of the projected component of F along line AC. Express this component as a Cartesian vector.
2-86. Determine the angle between the pipe segments BA and BC.
2
Probs. 2-84/85/86
CHAPTER 2 FORCE VECTORS * 2 - 8 4 . Determine the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

Q:

I have no idea how my teacher gets the answers for " Example 2.6" and "Example 2.7". Honestly, I am terrible at physics and Vector stuff. So, please take your time to explain in detail to me how my...

Q:

Determine the magnitudes of the components of F acting along and perpendicular to segment BC of the pipe assembly. 4 ft 3 ft F = (30i - 45j + 50k} lb B 4 ft 2 ft

Q:

Determine the magnitudes of the components of F = 600 N acting along and perpendicular to segment DE of the pipe assembly. 2 m 2 m 2 m 2 m 3 m E B F = 600 N

Q:

Determine the magnitudes of the components of F = 600 N acting along and perpendicular to segment DE of the pipe assembly. 2 m F-600 N

Q:

2-115. Determine the magnitude of the projection of the force F, along cable AC. PA F2 = 40 N 4 m F = 70 N A 2 m 3 m B 2 m 3 m 3 m 2-119. A force of F= [-40k) lb acts at the end of the pipe....

Q:

Calculus 3 Sections 12.1 and 12.2 Reading Assignment: 3D Coordinates and Vectors Answer Only Exercise 1 by using a screenshot provided Calculus Pearson textbook. Make sure you read these three...

Q:

Procedure I Data Table 1: Mass and Weight Object Mass in g Mass in kg Weight in N Wooden Friction block 31.1 0.031 0.30 Glass /sandpaper friction block 55.6 0.056 0.55 50 g hanging mass 50 0.05 0.49...

Q:

Experimental Data is R= 200arbs 5 arbs theta= 223 5 Purpose To understand more about vectors, by using three completely different methods of vector addition. We will use the data collected by a group...

Q:

First part is below and Second part of the Assignment is on top. Nothing is missing. Please solve it. Thank you. Exploration Physics 7. Perform a percent difference between your calculated...
