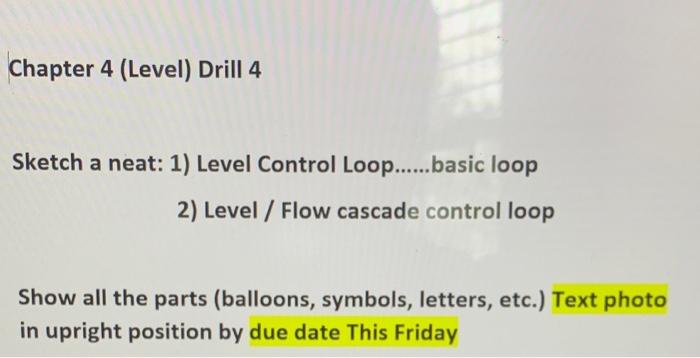

Question: Chapter 4 (Level) Drill 4 Sketch a neat: 1) Level Control Loop....basic loop 2) Level / Flow cascade control loop Show all the parts (balloons,

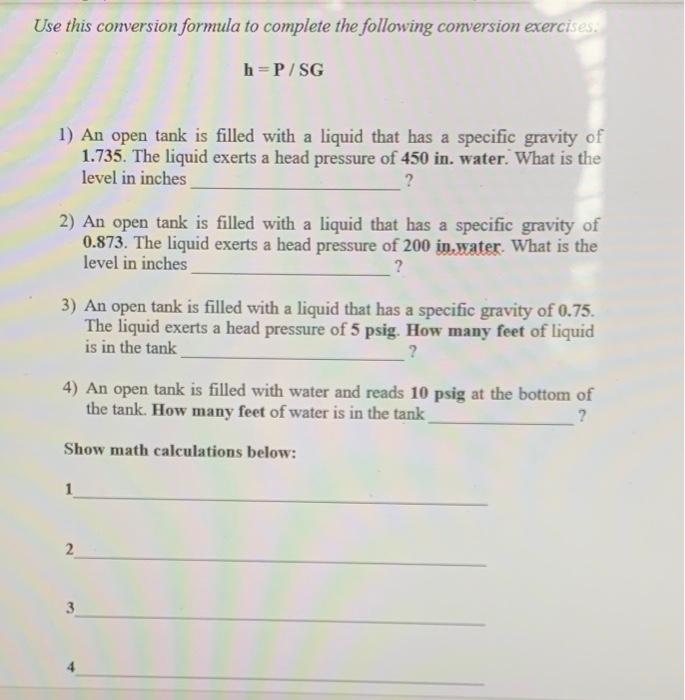

Chapter 4 (Level) Drill 4 Sketch a neat: 1) Level Control Loop....basic loop 2) Level / Flow cascade control loop Show all the parts (balloons, symbols, letters, etc.) Text photo in upright position by due date This Friday Use this conversion formula to complete the following conversion exercises h=P/SG 1) An open tank is filled with a liquid that has a specific gravity of 1.735. The liquid exerts a head pressure of 450 in. water. What is the level in inches ? 2) An open tank is filled with a liquid that has a specific gravity of 0.873. The liquid exerts a head pressure of 200 inwater. What is the level in inches ? 3) An open tank is filled with a liquid that has a specific gravity of 0.75. The liquid exerts a head pressure of 5 psig. How many feet of liquid is in the tank ? 4) An open tank is filled with water and reads 10 psig at the bottom of the tank. How many feet of water is in the tank ? Show math calculations below: 1 2
