Question: Chapter 4 , Problem 5 2 . For the transistor model in Fig. 4 . 1 1 8 , obtain the Thevenin equivalent at terminals

Chapter 4, Problem 52.

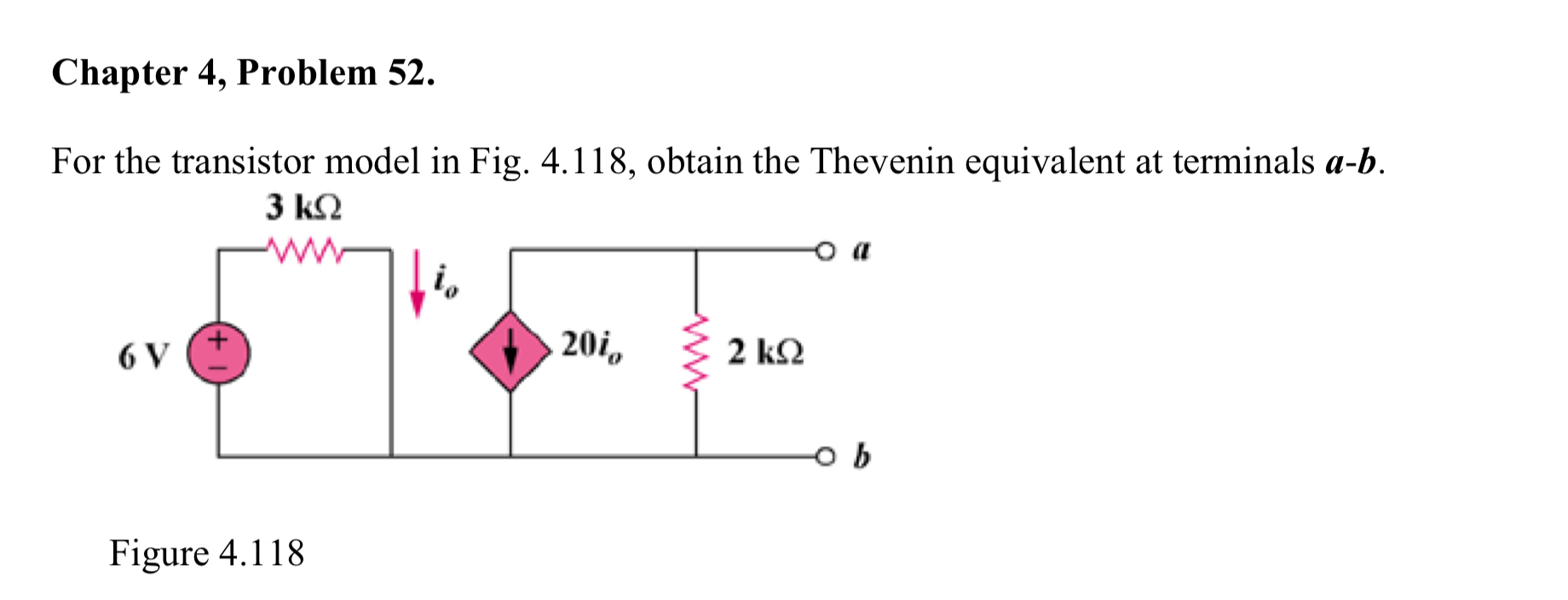

For the transistor model in Fig. 4.118, obtain the Thevenin equivalent at terminals a-b.
Figure 4.118
Chapter 4 , Problem 5 2 . For the transistor

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Electrical Engineering Questions!

Q:

2 - For the transistor model in figure ( 2 ) obtain the Thevenin equivalent at terminals a - b | | | what resistor connected across terminals a - b will absorb maximum power from the circuit? What is...
