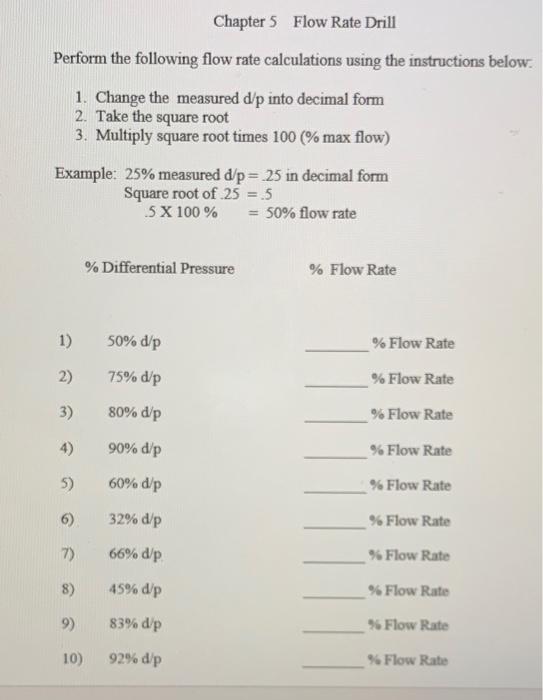

Chapter 5 Flow Rate Drill Perform the following flow rate calculations using the instructions below. 1. Change the measured dp into decimal form 2. Take the square root 3. Multiply square root times 100 % max flow) Example: 25% measured dp = 25 in decimal form Square root of 25 = 5 5 X 100 % = 50% flow rate % Differential Pressure % Flow Rate 1) % Flow Rate 50% d/p 75% d/p 2) % Flow Rate % Flow Rate 3) 80% dp 4) 90% dp % Flow Rate 5) 60% dp % Flow Rate 6) 32% dp % Flow Rate 7) 66% dp 8) 45% dp % Flow Rate % Flow Rate > Flow Rate 9) 83% dp 10) 92% dip % Flow Rate
