CHAPTER $6$ ORTHOGRAPHIC PROIECTION

$9$

$10$

$11$

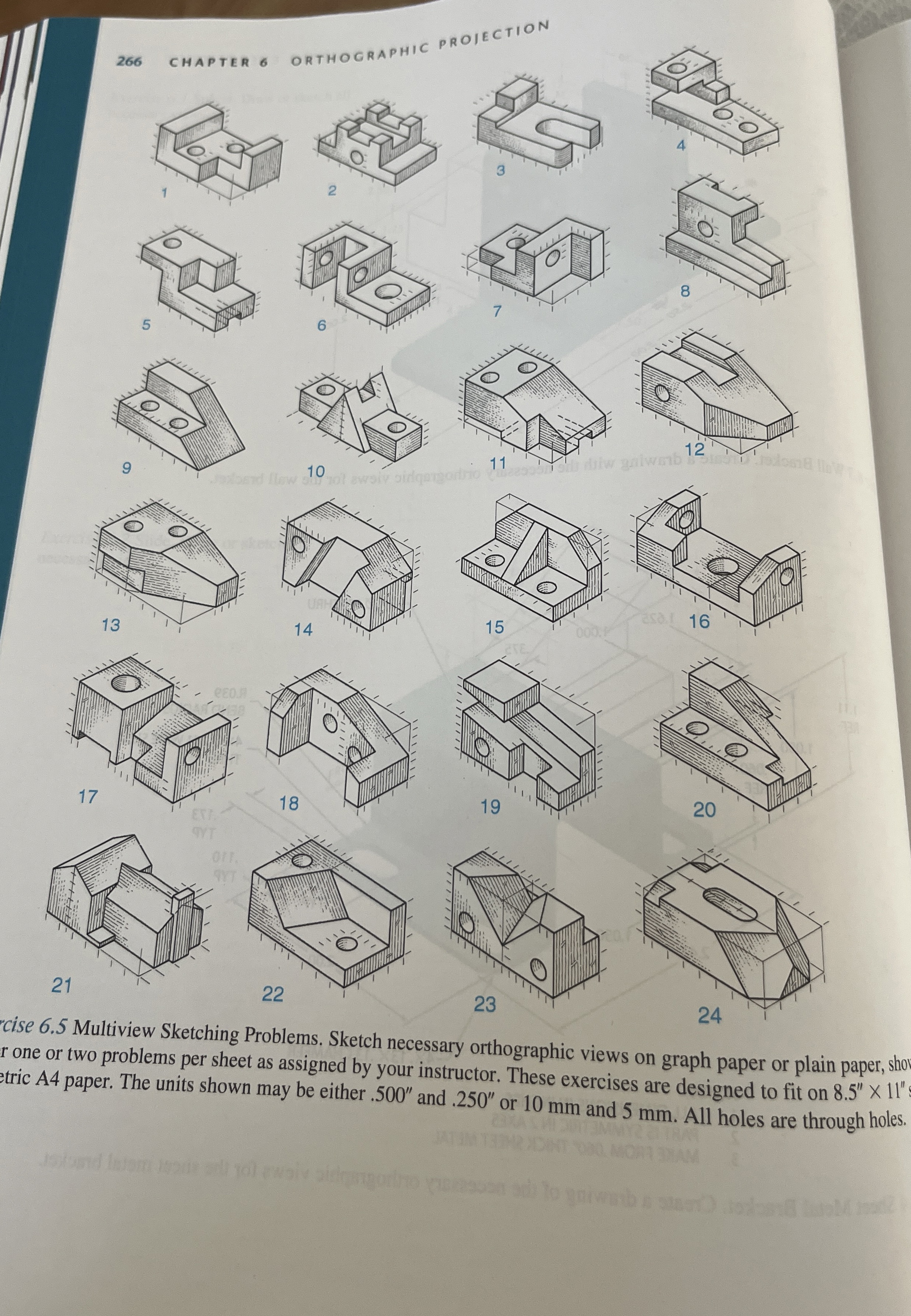

cise $6\mathrm{.}5$ Multiview Sketching Problems. Sketch necessary orthographic views on graph paper or plain paper, sho

r one or two problems per sheet as assigned by your instructor. These exercises are designed to fit on ${8\mathrm{.}5}^{\text{'}\text{'}}{11}^{\text{'}\text{'}}$

tric A$4$ paper. The units shown may be either ${\mathrm{.}500}^{\text{'}\text{'}}$ and ${\mathrm{.}250}^{\text{'}\text{'}}$

Please Do number $22,$ top $,$ front and right view including dimensions and hidden and center lines
