Chapter$+6+$Schedule

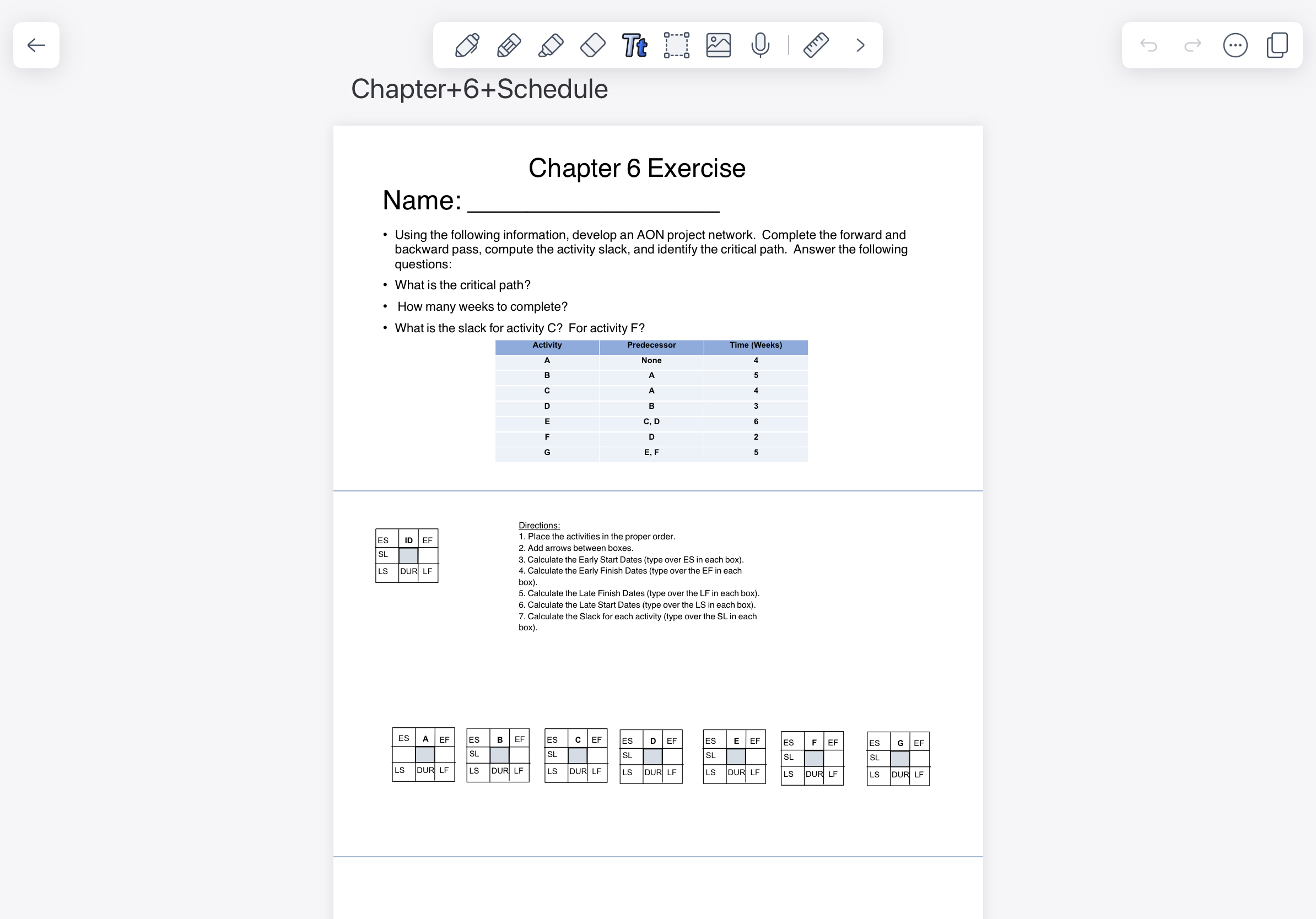

Chapter $6$ Exercise

Name:

Using the following information, develop an AON project network. Complete the forward and backward pass, compute the activity slack, and identify the critical path. Answer the following questions:

What is the critical path?

How many weeks to complete?

What is the slack for activity C$?$ For activity F$?$

$\backslash$table$[[$Activity$,$Predecessor,Time $($Weeks$)],[$A$,$None,$4],[$B$,$A$,5],[$C$,$A$,4],[$D$,$B$,3],[$E$,$C$,$ D$,6],[$F$,$D$,2],[$G$,$E$,$ F$,5]]$

$\backslash$table$[[$ES$,$ID$,$EF$],[$SL$,,],[$LS$,$DUR,LF$]]$

Directions:

Place the activities in the proper order.

Add arrows between boxes.

Calculate the Early Start Dates $($type over ES in each box$).$

Calculate the Early Finish Dates $($type over the EF in each

box$).$

Calculate the Late Finish Dates $($type over the LF in each box$).$

Calculate the Late Start Dates $($type over the LS in each box$)$

Calculate the Slack for each activity $($type over the SL in each box$).$
