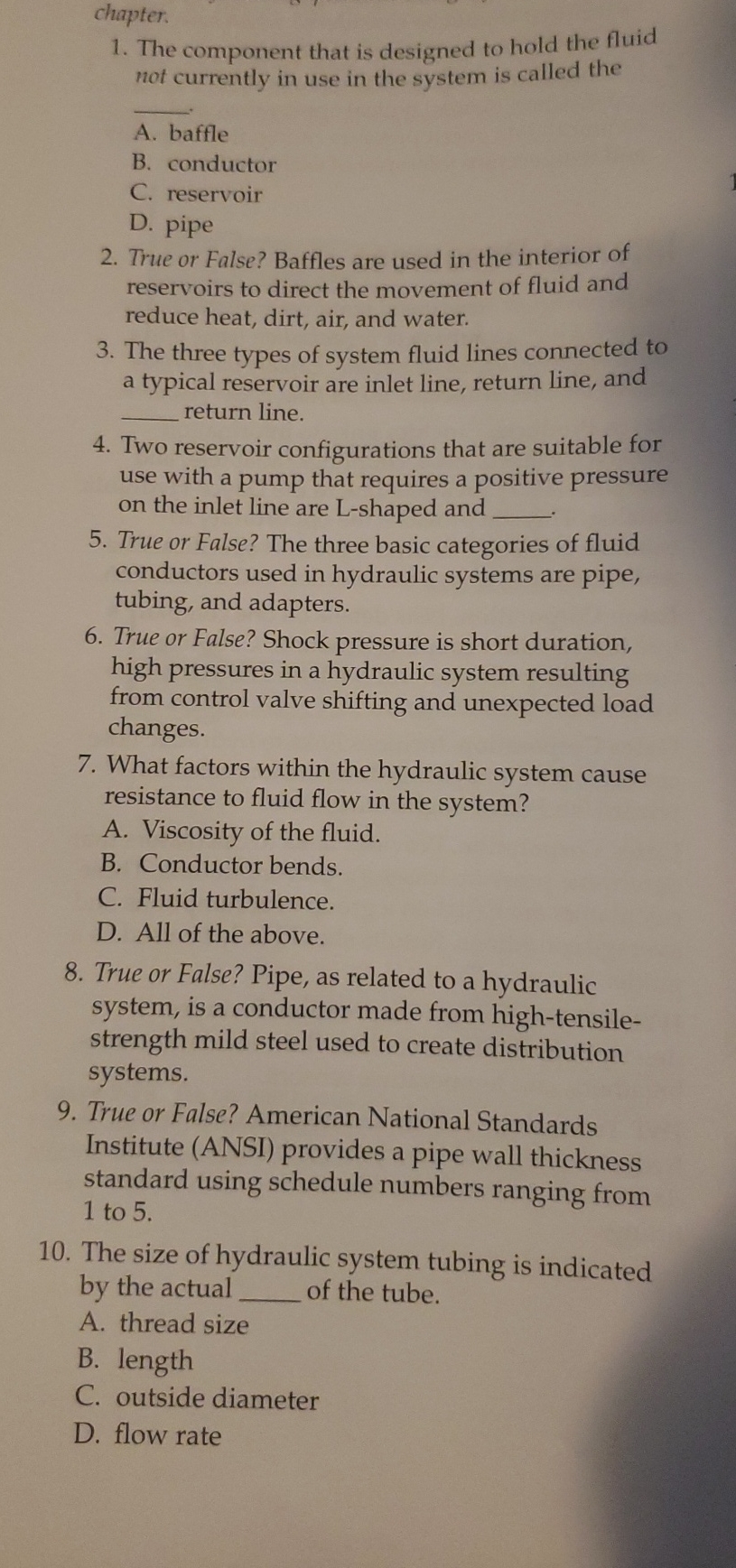

chapter.

The component that is designed to hold the fluid

not currently in use in the system is called the

A$.$ baffle

B$.$ conductor

C$.$ reservoir

D$.$ pipe

True or False? Baffles are used in the interior of

reservoirs to direct the movement of fluid and

reduce heat, dirt, air, and water.

The three types of system fluid lines connected to

a typical reservoir are inlet line, return line, and

return line.

Two reservoir configurations that are suitable for

use with a pump that requires a positive pressure

on the inlet line are L$-$shaped and

True or False? The three basic categories of fluid

conductors used in hydraulic systems are pipe,

tubing, and adapters.

True or False? Shock pressure is short duration,

high pressures in a hydraulic system resulting

from control valve shifting and unexpected load

changes.

What factors within the hydraulic system cause

resistance to fluid flow in the system?

A$.$ Viscosity of the fluid.

B$.$ Conductor bends.

C$.$ Fluid turbulence.

D$.$ All of the above.

True or False? Pipe, as related to a hydraulic

system, is a conductor made from high$-$tensile$-$

strength mild steel used to create distribution

systems.

True or False? American National Standards

Institute $($ANSI$)$ provides a pipe wall thickness

standard using schedule numbers ranging from

$1$ to $5.$

The size of hydraulic system tubing is indicated

by the actual

of the tube.

A$.$ thread size

B$.$ length

C$.$ outside diameter

D$.$ flow rate
