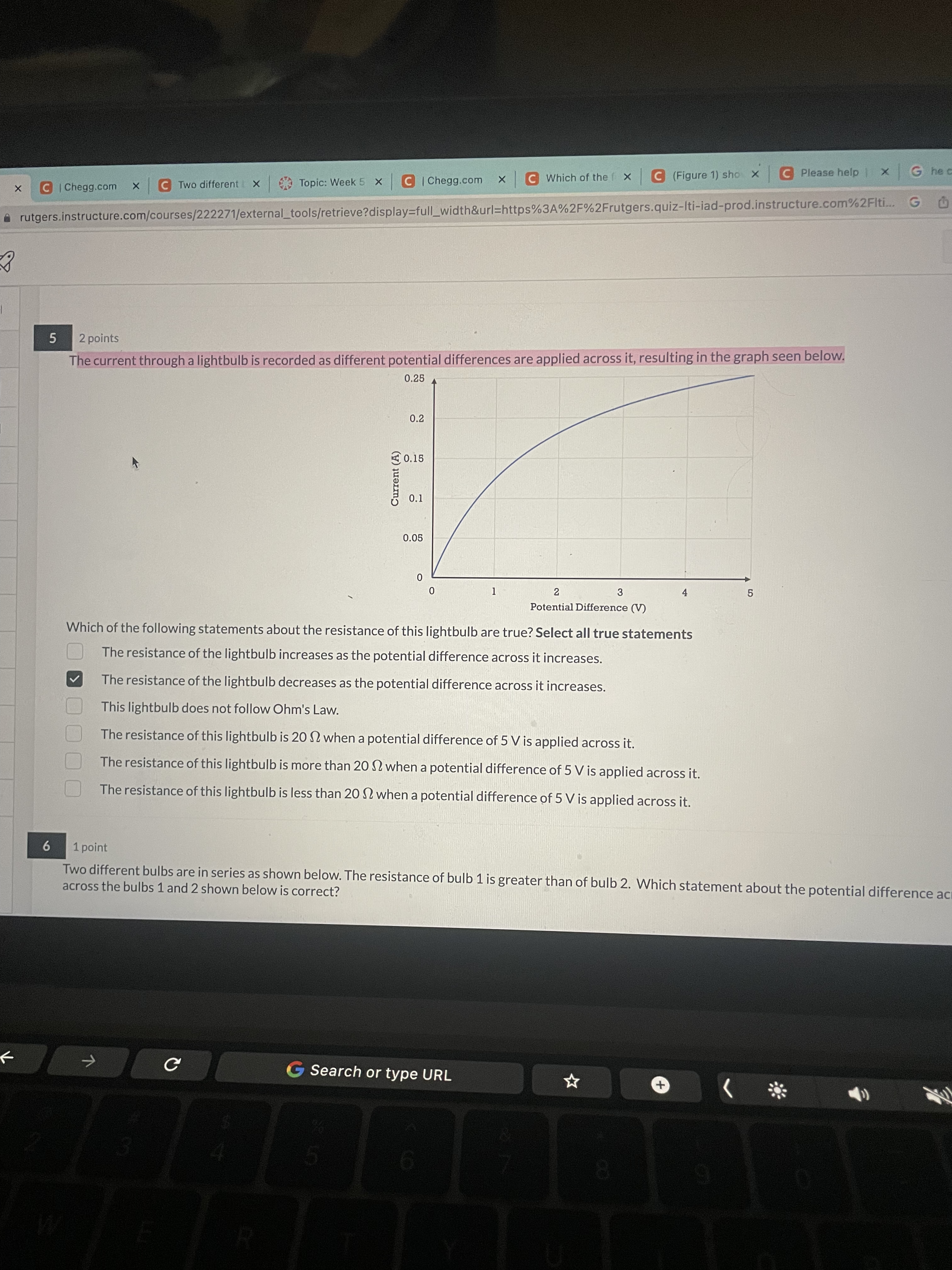

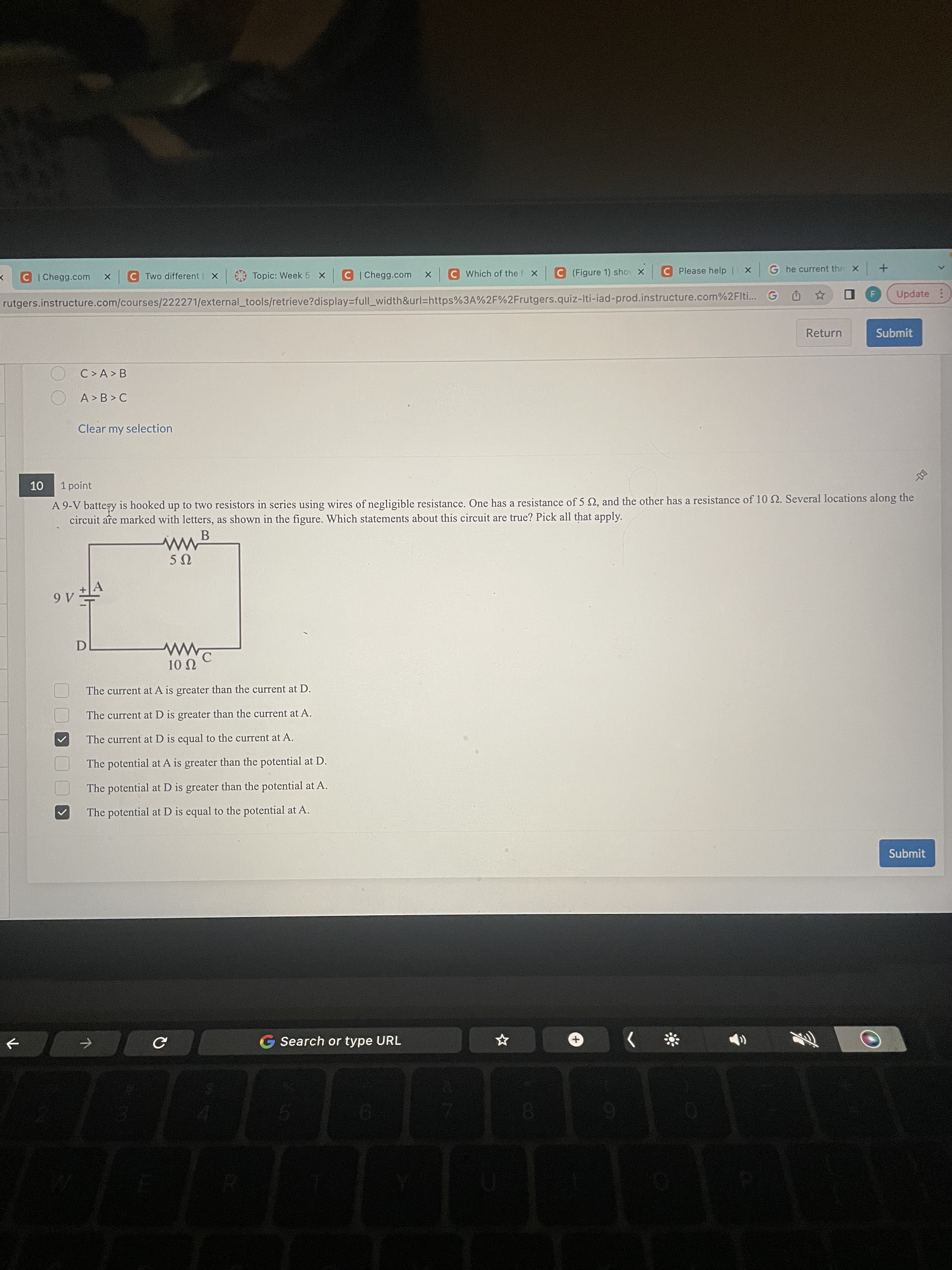

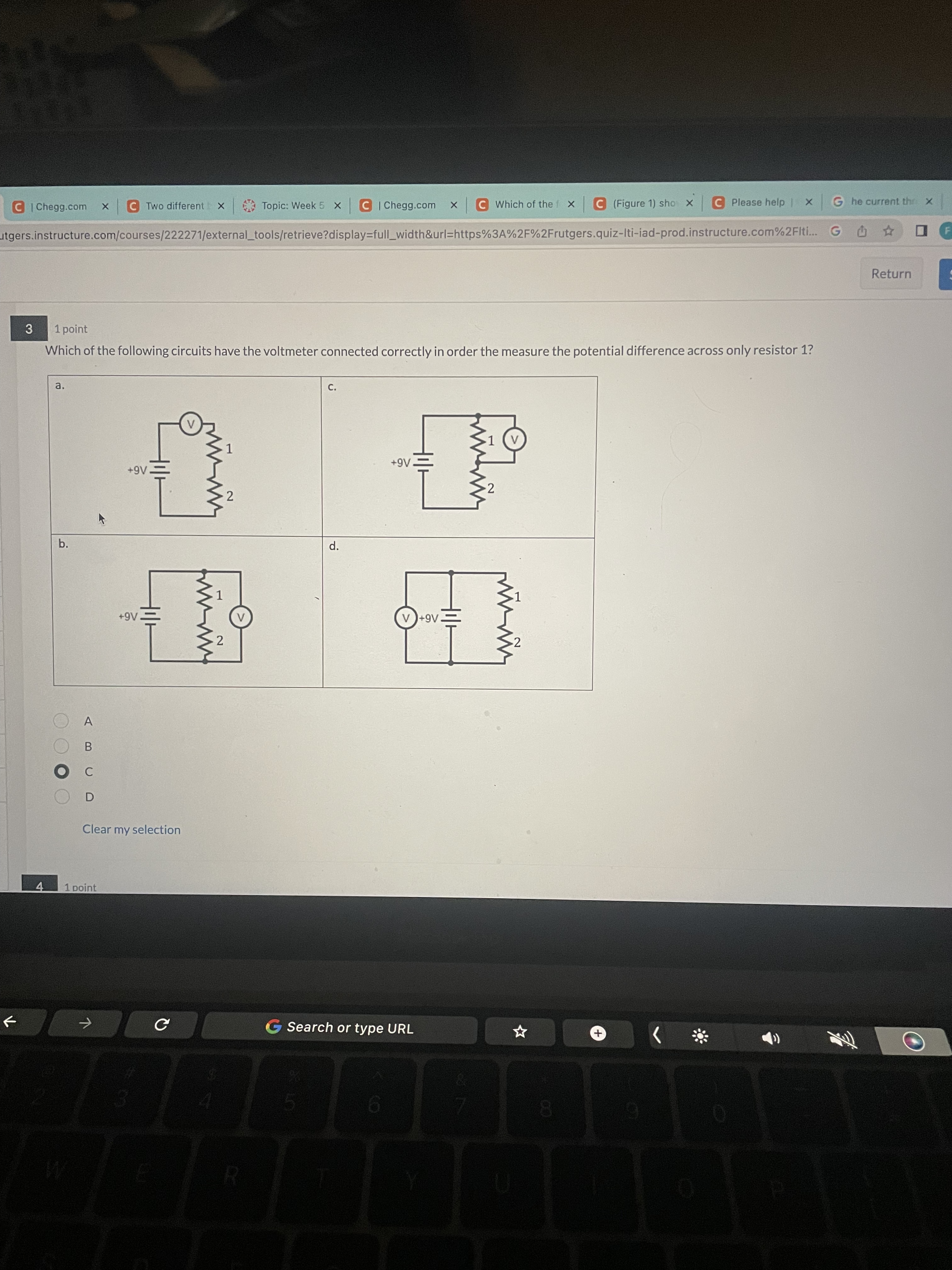

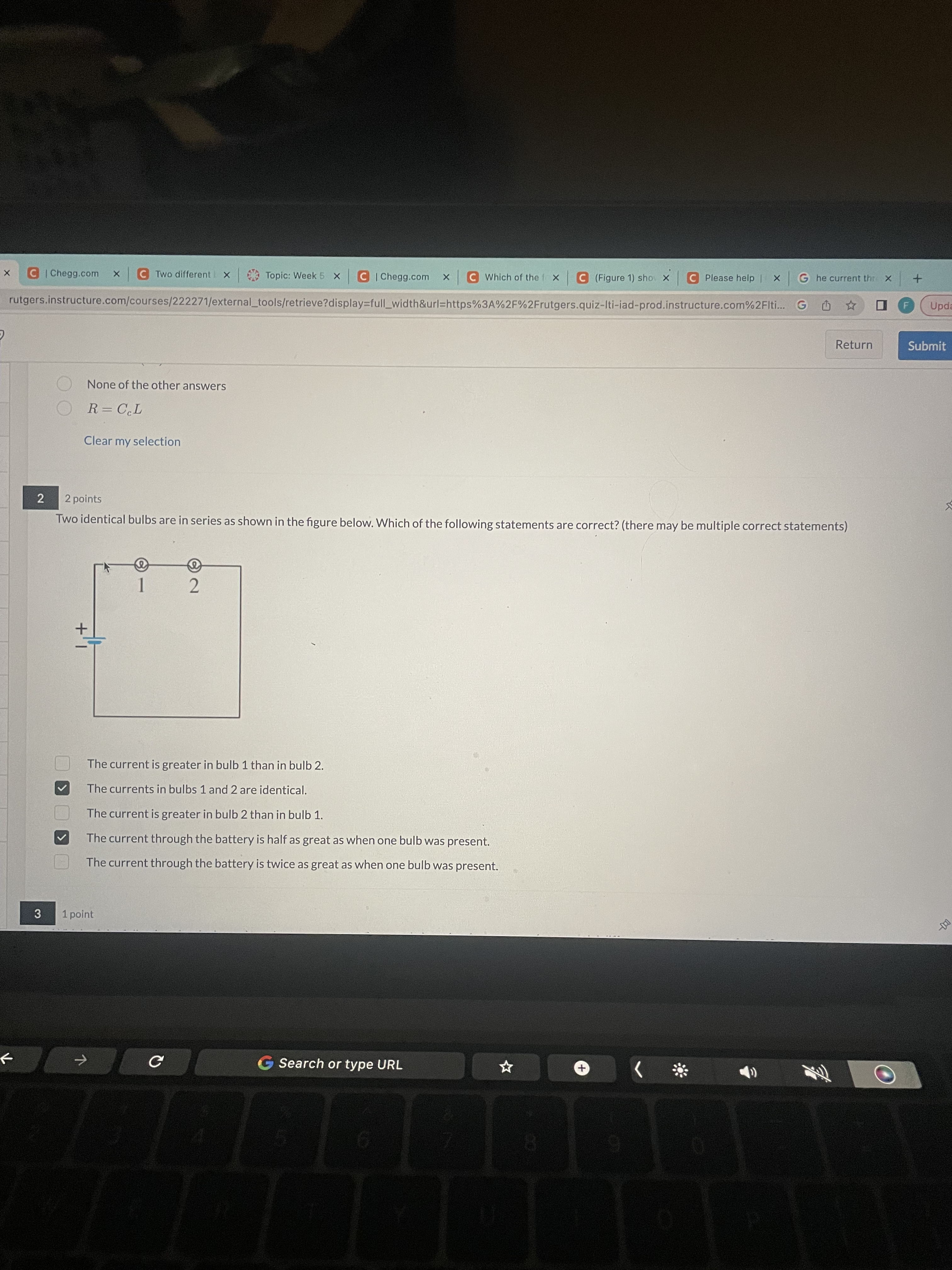

| Chegg.com x C Two different | x Topic: Week 5 x | | Chegg.com x | @ Which of the 1 x | ) (Figure 1) show x | @ Please help | x | G he current thro x | + rutgers.instructure.com/courses/222271/external_tools/retrieve?display=full_width&url=https%3A%2F%2Frutgers.quiz-Iti-iad-prod.instructure.com%2Flti... G * OF (Update Return Submit O C > A > B O A > B > C Clear my selection 10 1 point A 9-V battery is hooked up to two resistors in series using wires of negligible resistance. One has a resistance of 5 $2, and the other has a resistance of 10 $2. Several locations along the circuit are marked with letters, as shown in the figure. Which statements about this circuit are true? Pick all that apply. MMMB 50 9V- D WW 102 The current at A is greater than the current at D. The current at D is greater than the current at A. The current at D is equal to the current at A. The potential at A is greater than the potential at D. The potential at D is greater than the potential at A. The potential at D is equal to the potential at A. Submit C G Search or type URL +x @ | Chegg.com x | Two different | x | Topic: Week 5 x | | Chegg.com x | Which of the f x | @ (Figure 1) show x | Please help | x | G he current thri x | + rutgers.instructure.com/courses/222271/external_tools/retrieve?display=full_width&url=https%3A%2F%2Frutgers.quiz-Iti-iad-prod.instructure.com%2FIti... G * I F (Up Return Submit K VVVV-VVVV-VV-VW Clear my selection 9 2 points Three circuits with identical bulbs and emf sources are shown in the figure below. Rank the circuits in terms of the ammeter readings, with the largest ammeter reading lis first. 3 B A A TL TI 20 36 O B > C > A O B > A > C O A > C > B O C > B > A 10 O C> A > B O A > B > C Clear my selection G Search or type URL + Ox C | Chegg.com x C Two different x 3 Topic: Week 5 x C | Chegg.com x C Which of the f x @ (Figure 1) sho x | Please help | x | G he G rutgers.instructure.com/courses/222271/external_tools/retrieve?display=full_width&url=https%3A%2F%2Frutgers.quiz-Iti-iad-prod.instructure.com%2FIti... 5 2 points The current through a lightbulb is recorded as different potential differences are applied across it, resulting in the graph seen below. 0.25 0.2 $0.15 Current 0.1 0.05 2 3 5 Potential Difference () Which of the following statements about the resistance of this lightbulb are true? Select all true statements The resistance of the lightbulb increases as the potential difference across it increases. V The resistance of the lightbulb decreases as the potential difference across it increases. This lightbulb does not follow Ohm's Law. The resistance of this lightbulb is 20 S when a potential difference of 5 V is applied across it. The resistance of this lightbulb is more than 20 $ when a potential difference of 5 V is applied across it. O The resistance of this lightbulb is less than 20 $2 when a potential difference of 5 V is applied across it. 6 1 point Two different bulbs are in series as shown below. The resistance of bulb 1 is greater than of bulb 2. Which statement about the potential difference a across the bulbs 1 and 2 shown below is correct? C G Search or type URL +| Chegg.com x C Two different x Topic: Week 5 x | | Chegg.com x | @ Which of the 1 x | @ (Figure 1) sho x C Please help | x G he current the x utgers.instructure.com/courses/222271/external_tools/retrieve? display=full_width&url=https%3A%2F%2Frutgers.quiz-Iti-iad-prod.instructure.com%2Flti... G F Return 3 1 point Which of the following circuits have the voltmeter connected correctly in order the measure the potential difference across only resistor 1? +9v _ +9V N b. d. +9V - V V+9V= A O B O D Clear my selection 4 1 point C G Search or type URL + O| Chegg.com x | Two different | x |Topic: Week 5 x | | Chegg.com x | @ Which of the ( x | @ (Figure 1) show x | @ Please help | x | G he current thi x |+ rutgers.instructure.com/courses/222271/external_tools/retrieve?display=full_width&url=https%3A%2F%2Frutgers.quiz-Iti-iad-prod.instructure.com%2Flti... G *| (Upd Return Submit None of the other answers O R = CcL Clear my selection 2 2 points Two identical bulbs are in series as shown in the figure below. Which of the following statements are correct? (there may be multiple correct statements) U The current is greater in bulb 1 than in bulb 2. V The currents in bulbs 1 and 2 are identical. The current is greater in bulb 2 than in bulb 1. The current through the battery is half as great as when one bulb was present. The current through the battery is twice as great as when one bulb was present. 3 1 point C G Search or type URL +
