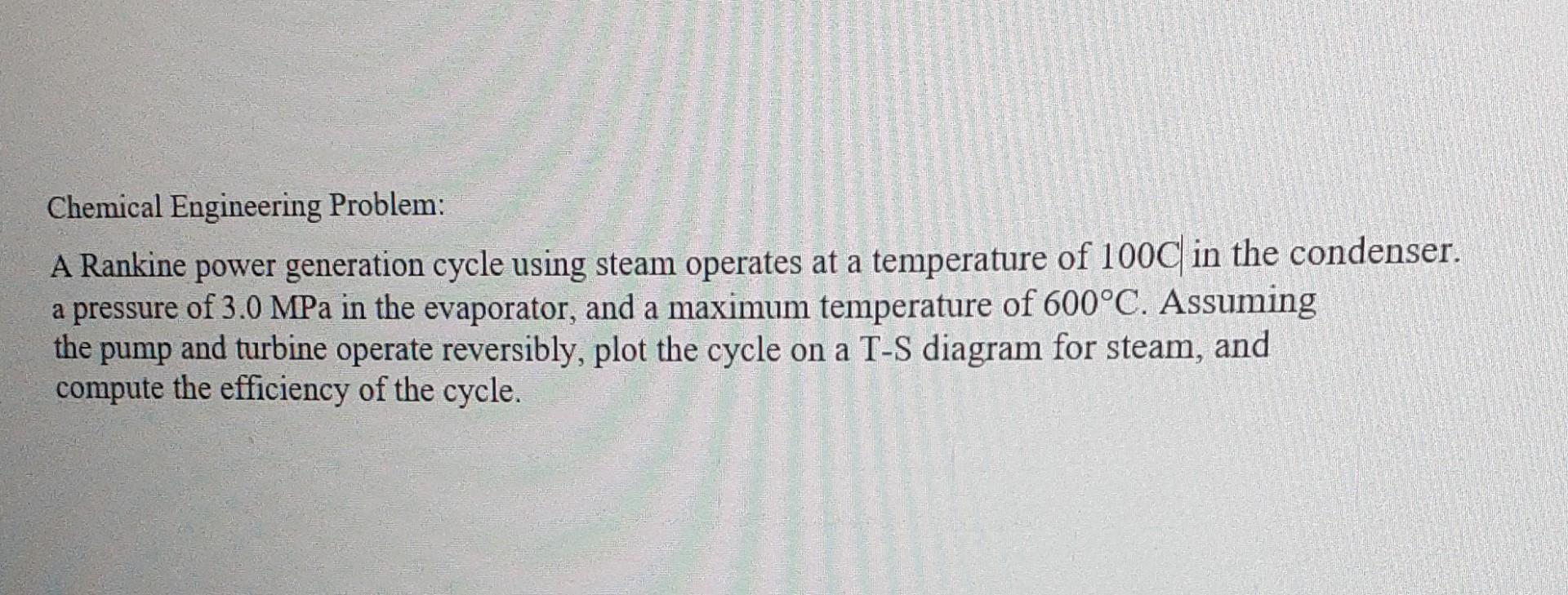

Chemical Engineering Problem: A Rankine power generation cycle using steam operates at a temperature of 1000 in the condenser. a pressure of 3.0 MPa in the evaporator, and a maximum temperature of 600C. Assuming the pump and turbine operate reversibly, plot the cycle on a T-S diagram for steam, and compute the efficiency of the cycle. a T F A 5 (1) 5 (b) T Ok (c) $ 0 0 0 0 2 $ WNET te) le) Figure 5.2-2 (a-d) T-S diagrams of various Rankine cycles. (e) Area equal to heat flow into boiler. () Area equal to heat removed in condenser. (8) Area equal to net work produced in cycle. SP
