- Chemical Reaction Engineering problem -

Make sure to draw a graph using the Polymath program

Please solve the problem (f)

Please solve the problem (f)

Make sure to draw a graph using the Polymath program Please write neatly so that I can read it easily

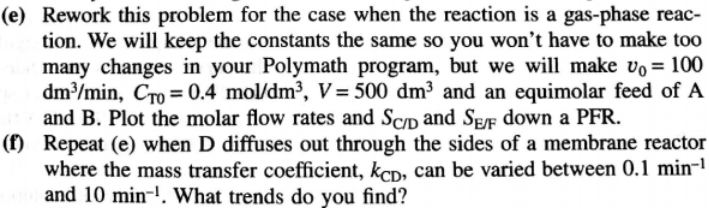

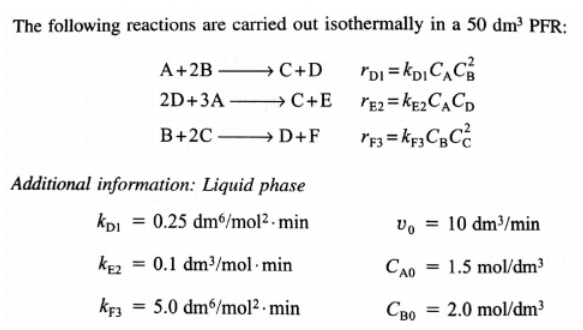

The following reactions are carried out isothermally in a 50dm3 PFR: A+2BC+D2D+3AC+EB+2CD+FrD1=kD1CACB2rE2=kE2CACDrF3=kF3CBCC2 Additional information: Liquid phase kD1kE2kF3=0.25dm6/mol2min=0.1dm3/molmin=5.0dm6/mol2minv0=10dm3/minCA0=1.5mol/dm3CB0=2.0mol/dm3 (e) Rework this problem for the case when the reaction is a gas-phase reaction. We will keep the constants the same so you won't have to make too many changes in your Polymath program, but we will make v0=100 dm3/min,CT0=0.4mol/dm3,V=500dm3 and an equimolar feed of A and B. Plot the molar flow rates and SC/D and SE/F down a PFR. (f) Repeat (e) when D diffuses out through the sides of a membrane reactor where the mass transfer coefficient, kCD, can be varied between 0.1min1 and 10min1. What trends do you find
