Question: Choose R1 in the circuit of Fig. 9.13 so that the response after t = 0 will be critically damped. (b) Now select R2 to

Choose R1 in the circuit of Fig. 9.13 so that the response after t = 0 will be critically damped. (b) Now select R2 to obtain υ(0) = 100 V. (c) Find υ(t) at t = 1 ms.

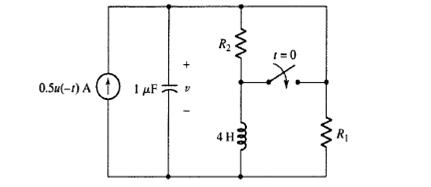

R2 I=0 0.Su(-1) A O 1 AF : 4 H R1

Step by Step Solution

★★★★★

3.38 Rating (154 Votes )

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock

Stepbystep soluti... View full answer

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
