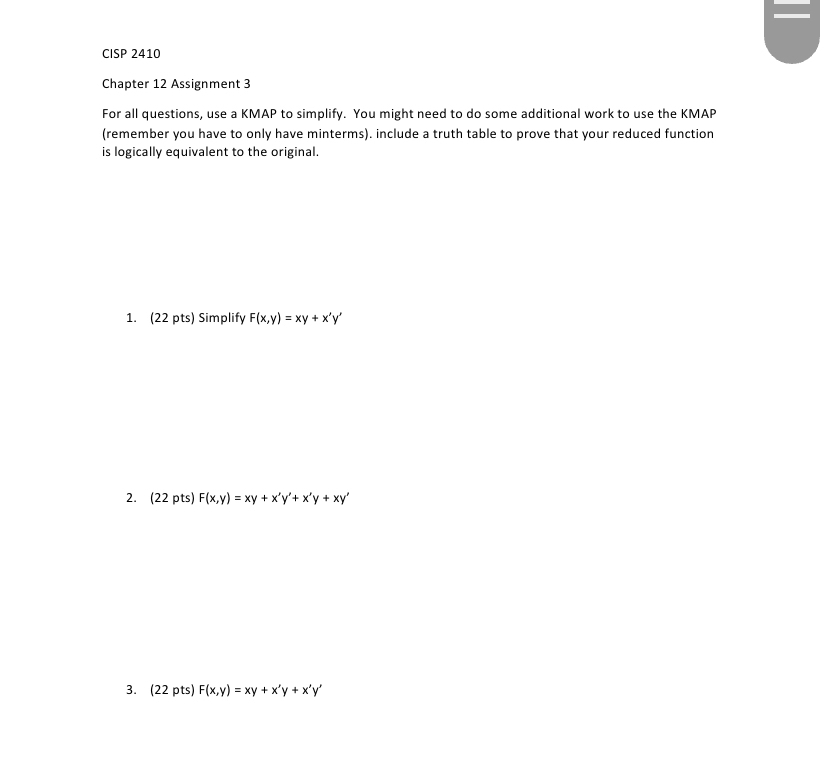

CISP $2410$

Chapter $12$ Assignment $3$

For all questions, use a KMAP to simplify. You might need to do some additional work to use the KMAP $($remember you have to only have minterms$).$ include a truth table to prove that your reduced function is logically equivalent to the original.

$(22$ pts$)$ Simplify $F(x,y)=xy+x^{\text{'}}{y}^{\text{'}}$

$(22$ pts$)F(x,y)=xy+x^{\text{'}}{y}^{\text{'}}+x^{\text{'}}y+x{y}^{\text{'}}$

$(22$ pts$)F(x,y)=xy+x^{\text{'}}y+x^{\text{'}}{y}^{\text{'}}$
