Question: Civil Engineering Department Assignment No . 4 Date: 6 / 1 1 / 2 0 2 4 Mechanics of Materials - Course Code: CE 3

Civil Engineering Department
Assignment No.4
Date: 6/11/2024
Mechanics of Materials - Course Code: CE311

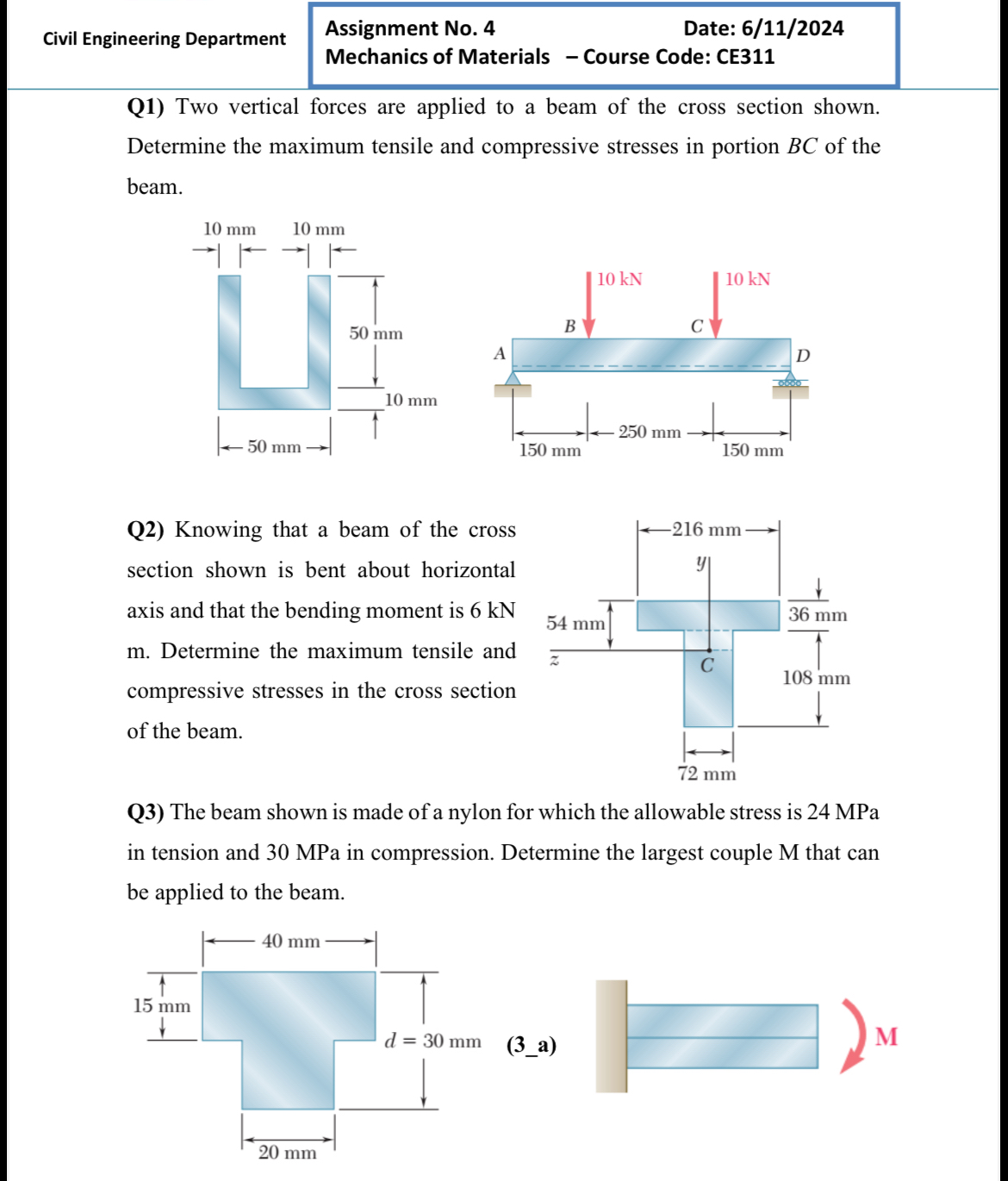

Q1) Two vertical forces are applied to a beam of the cross section shown. Determine the maximum tensile and compressive stresses in portion BC of the beam.
Q2) Knowing that a beam of the cross section shown is bent about horizontal axis and that the bending moment is 6 kN m . Determine the maximum tensile and compressive stresses in the cross section of the beam.
Q3) The beam shown is made of a nylon for which the allowable stress is 24 MPa in tension and 30 MPa in compression. Determine the largest couple M that can be applied to the beam.
