civil engineering PLEASE ANSWER ALL THE NEEDED QUESTIONS. INCLUDE THE FREE BODY DIAGRAM, AS WELL AS THE COMPLETE SOLUTION TO EACH QUESTION.

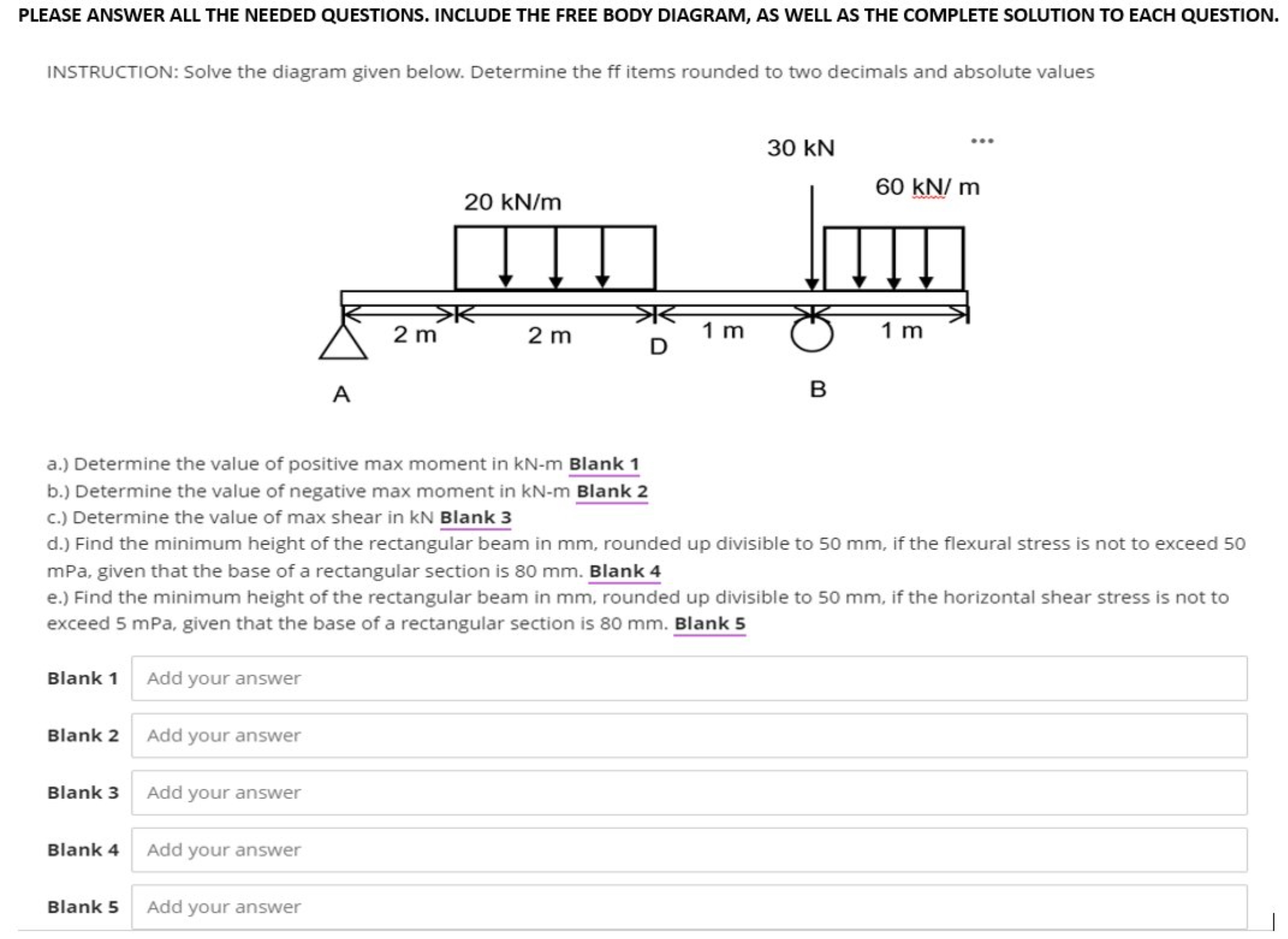

INSTRUCTION: Solve the diagram given below. Determine the ff items rounded to two decimals and absolute values

a$.)$ Determine the value of positive max moment in $kN-m$ Blank $1$

b$.)$ Determine the value of negative max moment in $kN-$m Blank $2_{?}$

c$.)$ Determine the value of max shear in KN Blank $3$

d$.)$ Find the minimum height of the rectangular beam in $mm,$ rounded up divisible to $50mm,$ if the flexural stress is not to exceed $50$

mPa, given that the base of a rectangular section is $80mm.$ Blank $4$

e$.)$ Find the minimum height of the rectangular beam in $mm,$ rounded up divisible to $50mm,$ if the horizontal shear stress is not to

exceed $5$mPa, given that the base of a rectangular section is $80mm.$ Blank $5$

Blank $1$ Add your answer

Blank $2$ Add your answer

Blank $3$ Add your answer

Blank $4$

Blank $5$

Add your answer
